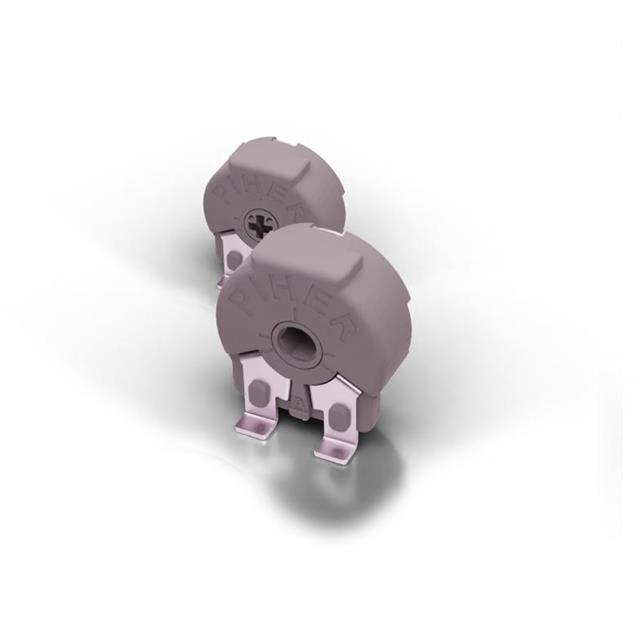

PS10KH40-503A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 50K OHM 0.15W GW SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS10KH40-503A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 50K OHM 0.15W GW SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS10KH40-503A3030 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 150 mW |
| Resistance | 50 kOhms |
| Resistive Material | Carbon |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Temperature Coefficient | 1500 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.44 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.44 | ||
| 10 | $ 1.27 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.06 | |||
| Tape & Reel (TR) | 400 | $ 1.00 | ||
| 800 | $ 0.81 | |||
| 1200 | $ 0.79 | |||
| 2000 | $ 0.68 | |||
| 10000 | $ 0.62 | |||
Description
General part information
PS10KH40-503A3030
50 kOhms 0.15W Gull Wing Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
