216A-08FO0
ActiveATTEND Technology

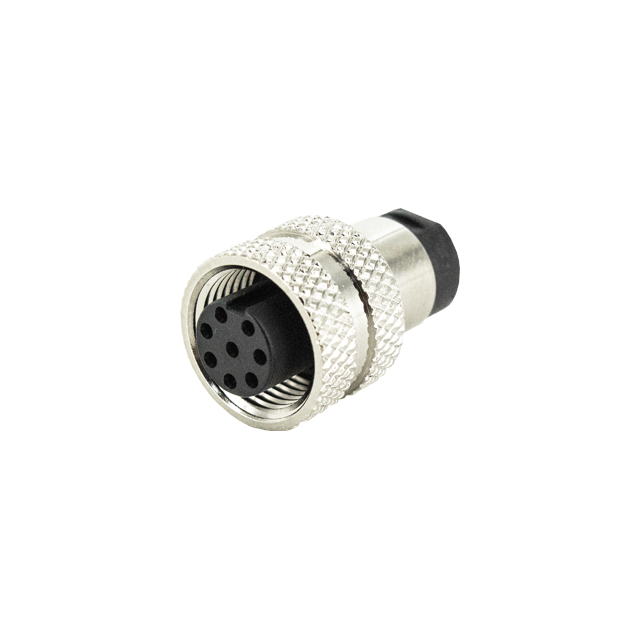

M12 A-CODE PLUG FOR CABLE, 8PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
216A-08FO0
ActiveATTEND Technology
M12 A-CODE PLUG FOR CABLE, 8PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 216A-08FO0 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating (Amps) | 2 A |
| Ingress Protection | Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.03 | |
| 10 | $ 8.47 | |||
| 25 | $ 7.65 | |||
| 40 | $ 7.27 | |||
| 80 | $ 6.75 | |||
| 230 | $ 6.05 | |||
| 440 | $ 5.67 | |||
| 945 | $ 5.27 | |||
Description
General part information
216A-08FO0
8 Position Circular Connector Plug, Female Sockets Solder Cup
