PC452020
ActivePrecision PCBS
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Search across all available documentation for this part.
PC452020
ActivePrecision PCBS
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PC452020 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.58 mm |
| Circuit Pattern | 3 Hole Pad (Both Sides) |
| Hole Diameter | 0.042 " (inches) |
| Hole Diameter | 1.07 mm |
| Material | FR4 Epoxy Glass |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.65 | |
| 5 | $ 2.35 | |||
| 10 | $ 2.10 | |||
Description
General part information
PC452020

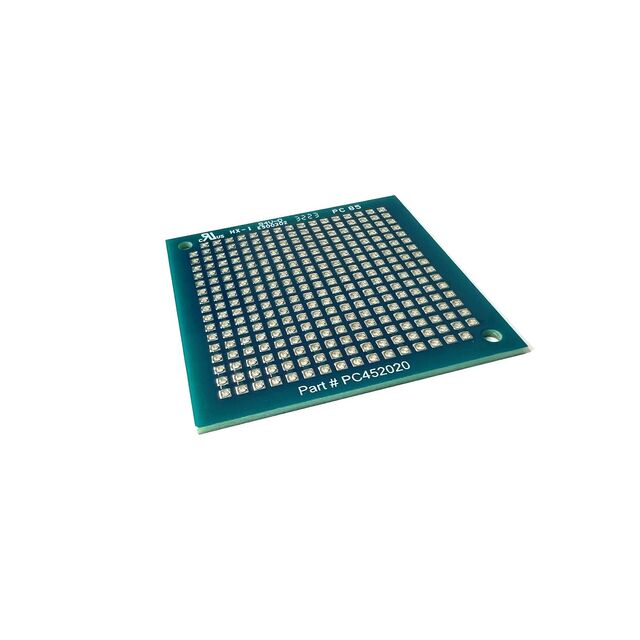

Breadboard, General Purpose Plated Through Hole (PTH) 3 Hole Pad (Both Sides) 0.1" (2.54mm) Grid
Documents
Technical documentation and resources
No documents available
