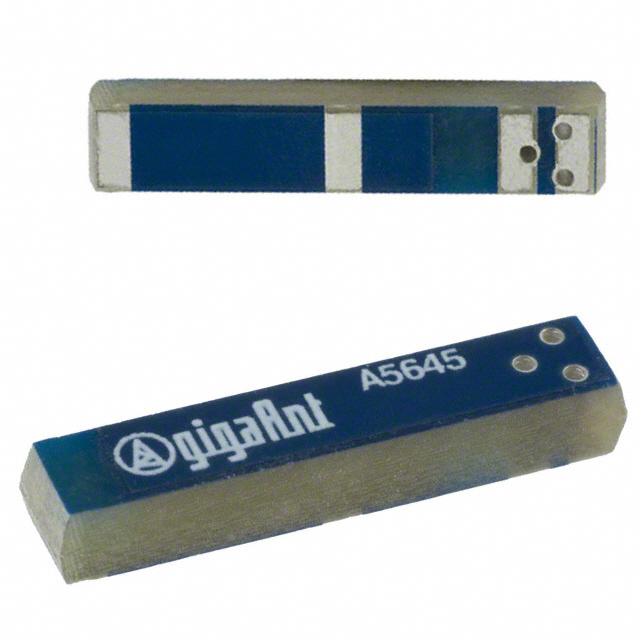

A5645
ObsoleteAntenova
RF ANT 2.4GHZ PCB TRACE SLDR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A5645
ObsoleteAntenova
RF ANT 2.4GHZ PCB TRACE SLDR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A5645 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Zigbee™, WiMedia™, Bluetooth, WLAN |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.2 dBi |
| Height (Max) | 3.3 mm |
| Height (Max) [Max] [z] | 0.13 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A5645
RF ANTENNA Bluetooth, WiMedia™, WLAN, Zigbee™ PCB Trace Solder Surface Mount
Documents
Technical documentation and resources
