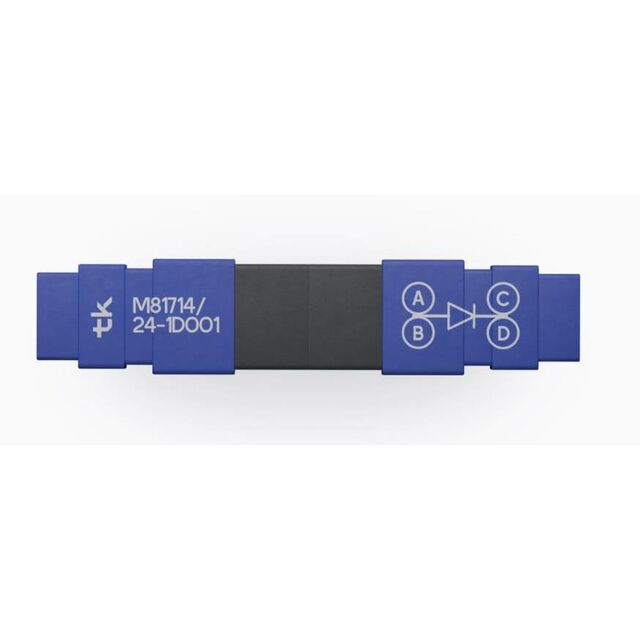

M81714/24-1D001
ActiveDME INTERCONNECT
CONN WIRE SPLICE SZ22 1.904" L;
Deep-Dive with AI
Search across all available documentation for this part.
M81714/24-1D001
ActiveDME INTERCONNECT
CONN WIRE SPLICE SZ22 1.904" L;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M81714/24-1D001 |
|---|---|
| Contact Size | 22 |
| Grade | Military |
| Module Capacity | 4 |
| Qualification | MIL-T-81714 |
| Size / Dimension [x] | 1.904 " |
| Size / Dimension [x] | 48.36 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [y] | 10.16 mm |
| Size / Dimension [z] | 6.99 mm |
| Size / Dimension [z] | 0.275 " |
| Type | Wire Splice, Resistor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 88.20 | |
| 20 | $ 83.79 | |||
| 50 | $ 81.14 | |||
| 150 | $ 78.50 | |||
| 250 | $ 75.85 | |||
Description
General part information
M81714/24-1D001
Connector Wire Splice, Resistor Contact Size 22
Documents
Technical documentation and resources
No documents available
