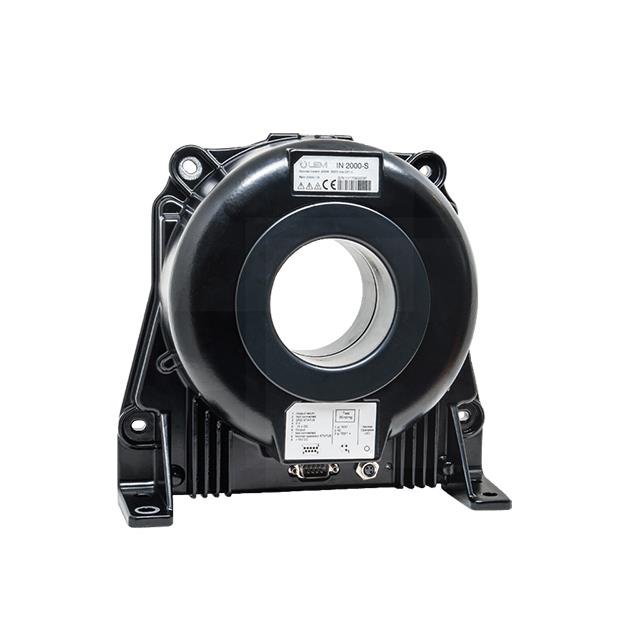

IN 2000-SB/SP1
ActiveLEM USA Inc.
2000A ULTRA ACCURACY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN 2000-SB/SP1 |
|---|---|
| Current - Sensing | 2000 A |
| For Measuring | AC/DC |
| Frequency [Max] | 140 kHz |
| Frequency [Min] | DC |
| Linearity | 0.004 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensitivity | 2.5 mV/A |
| Sensor Type | Flux Gate, Closed Loop |
| Voltage - Supply [Max] | 15.75 V |
| Voltage - Supply [Min] | -14.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6688.79 | |
Description
General part information
IN 2000-SB/SP1
Current Sensor 2000A 1 Channel Flux Gate, Closed Loop Bidirectional Module, Single Pass Through
