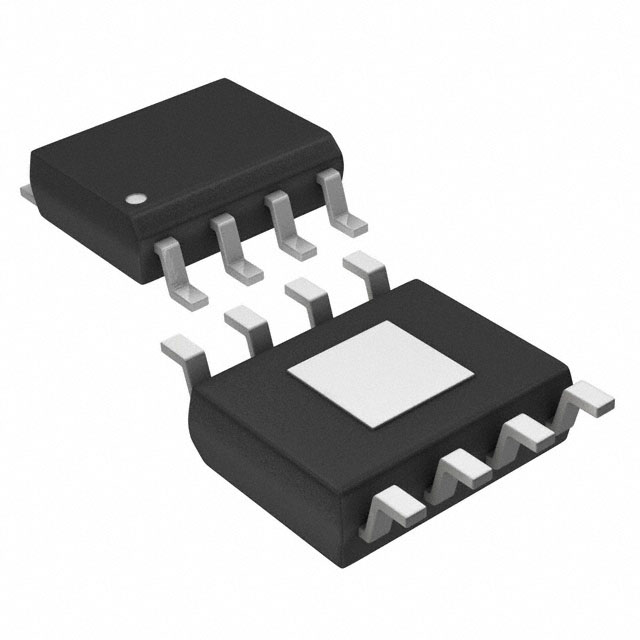

SPA-2318Z
ObsoleteRFMD
IC AMP W-CDMA 1.7-2.2GHZ 8SOIC
Deep-Dive with AI
Search across all available documentation for this part.
SPA-2318Z
ObsoleteRFMD
IC AMP W-CDMA 1.7-2.2GHZ 8SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPA-2318Z |
|---|---|
| Current - Supply [Max] | 425 mA |
| Current - Supply [Min] | 360 mA |
| Frequency [Max] | 2.2 GHz |
| Frequency [Min] | 1.7 GHz |
| Gain [Max] | 25 dB |
| Gain [Min] | 22.5 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 5.5 dB |
| P1dB | 29.5 dBm |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| RF Type | PCS, W-CDMA |
| Supplier Device Package | 8-SOIC |
| Test Frequency [Max] | 2.2 GHz |
| Test Frequency [Min] | 1.7 GHz |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.19 | |
| 10 | $ 8.61 | |||
| 25 | $ 8.41 | |||
| 100 | $ 8.29 | |||
Description
General part information
SPA-2318Z
RF Amplifier IC W-CDMA, PCS 1.7GHz ~ 2.2GHz 8-SOIC
Documents
Technical documentation and resources
No documents available
