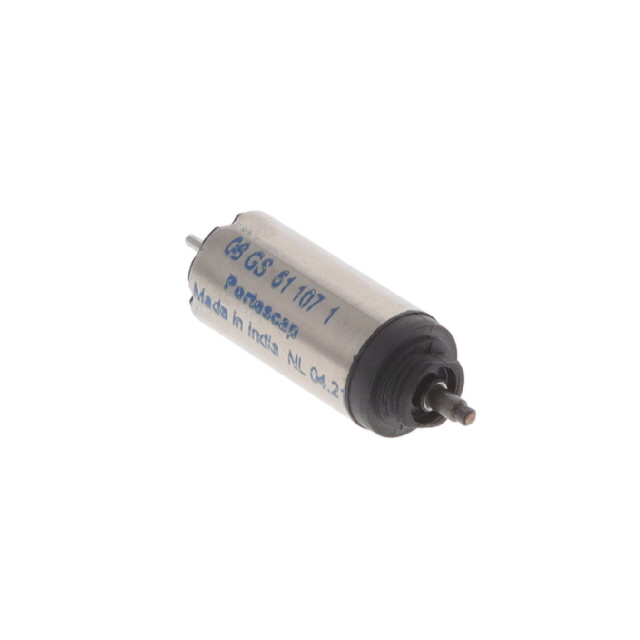

08GS61-107.1
ActivePortescap
STANDARD MOTOR 9500 RPM 2V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
08GS61-107.1
ActivePortescap
STANDARD MOTOR 9500 RPM 2V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 08GS61-107.1 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 5 mm |
| Length - Shaft and Bearing [x] | 0.197 in |
| Motor Type | Brushed |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 500 mW |
| RPM | 9500 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 8 mm |
| Size / Dimension [diameter] | 0.315 " |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.46 mNm |
| Torque - Rated (oz-in / mNm) | 0.065 oz-in |
| Type | DC Motor |
| Voltage - Rated | 2 VDC |
| Weight | 4.08 g |
| Weight | 0.009 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 37.11 | |
Description
General part information
08GS61-107.1
Brushed DC Motor Standard 9500 RPM 0.5W 2VDC
