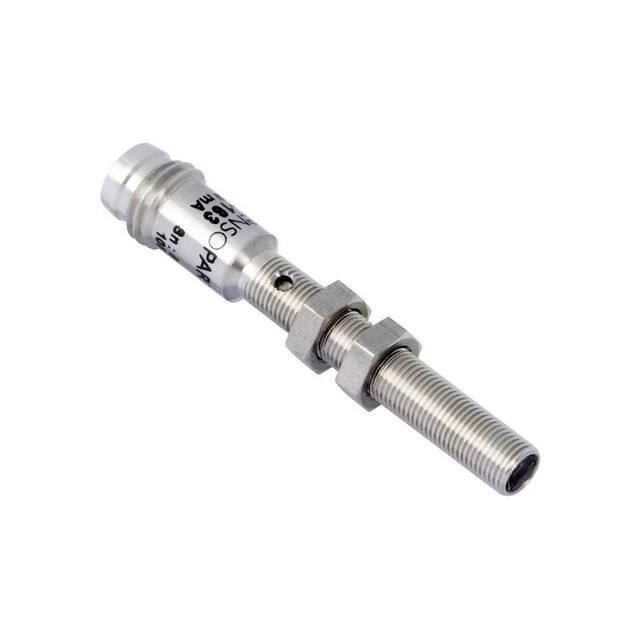

719-21003 - FT 05 R-PSL-K3
ActiveSensoPart
PHOTOELECTRIC DIFFUSE SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
719-21003 - FT 05 R-PSL-K3
ActiveSensoPart
PHOTOELECTRIC DIFFUSE SENSOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 719-21003 - FT 05 R-PSL-K3 |
|---|---|
| Connection Method | Connector, M8 |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source | 630 nm |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | PNP |
| Response Time | 500 µs |
| Sensing Distance | 2.362 in |
| Sensing Distance | 60 mm |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 184.80 | |
Description
General part information
719-21003 - FT 05 R-PSL-K3
Diffuse Optical Sensor 2.362" (60mm) PNP
Documents
Technical documentation and resources
No documents available
