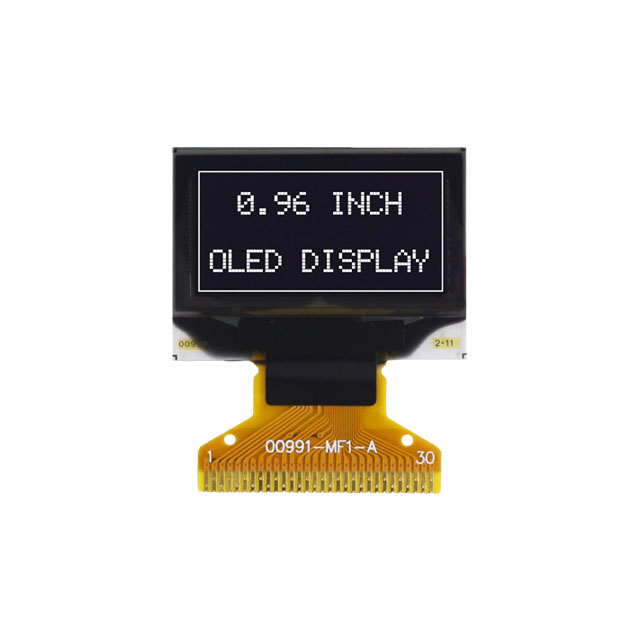

DLC0096DNOG-W-5
ActiveDLC Display Co.,Ltd
GRAPHIC DISPLAY OLED WHITE 0.96"
Deep-Dive with AI
Search across all available documentation for this part.
DLC0096DNOG-W-5
ActiveDLC Display Co.,Ltd
GRAPHIC DISPLAY OLED WHITE 0.96"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0096DNOG-W-5 |
|---|---|
| Controller Type | SSD1315 |
| Diagonal Screen Size | 0.96 in |
| Diagonal Screen Size | 24.38 mm |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.17 mm |
| Dot Pitch [y] | 0.17 mm |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 64 |
| Dot Size [x] | 0.15 mm |
| Dot Size [y] | 0.15 mm |
| Graphics Color | White |
| Interface | I2C, SPI |
| Viewing Area [custom] | 22.74 mm |
| Viewing Area [custom] | 1.86 mm |
| Viewing Area [x] | 22.74 mm |
| Viewing Area [y] | 11.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.24 | |
| 10 | $ 16.06 | |||
| 100 | $ 13.63 | |||
| 500 | $ 12.54 | |||
Description
General part information
DLC0096DNOG-W-5
Graphic LCD Display Module White OLED - Passive Matrix I2C, SPI 0.96" (24.38mm) 128 x 64
Documents
Technical documentation and resources
No documents available
