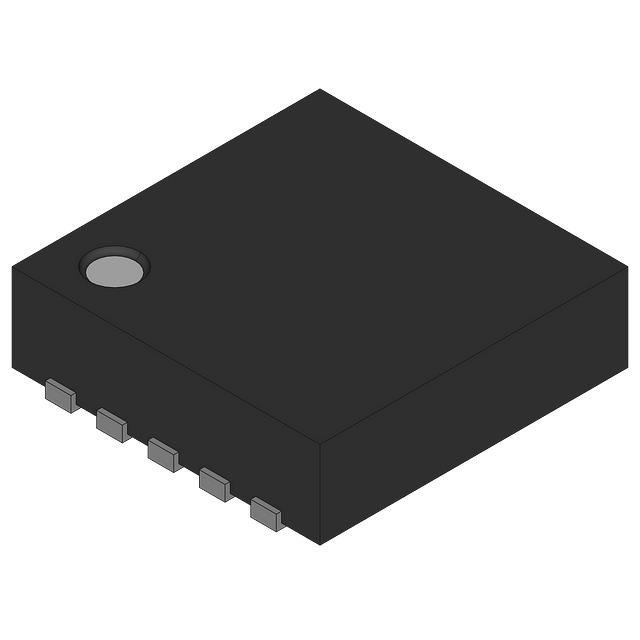

AWT6114M7P8
ActiveAnadigics
IC RF AMP CDMA 1.75GHZ-1.78GHZ
Deep-Dive with AI
Search across all available documentation for this part.
AWT6114M7P8
ActiveAnadigics
IC RF AMP CDMA 1.75GHZ-1.78GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AWT6114M7P8 |
|---|---|
| Current - Supply | 61 mA |
| Frequency [Max] | 1.78 GHz |
| Frequency [Min] | 1.75 GHz |
| Gain | 31 dB |
| Mounting Type | Surface Mount |
| P1dB | 28 dBm |
| Package / Case | 10-SMD Module |
| RF Type | CDMA |
| Test Frequency [Max] | 1.78 GHz |
| Test Frequency [Min] | 1.75 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 105 | $ 2.88 | |
Description
General part information
AWT6114M7P8
RF Amplifier IC CDMA 1.75GHz ~ 1.78GHz
Documents
Technical documentation and resources
No documents available
