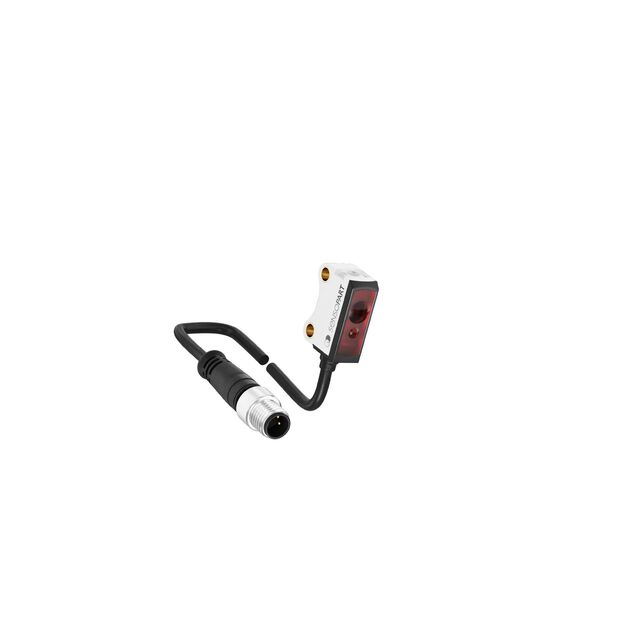

603-11006 - FR 10-R-NS-KM3
ActiveSensoPart
PHOTOELECTRIC RETRO-REFLECTIVE S
Deep-Dive with AI
Search across all available documentation for this part.
603-11006 - FR 10-R-NS-KM3
ActiveSensoPart
PHOTOELECTRIC RETRO-REFLECTIVE S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 603-11006 - FR 10-R-NS-KM3 |
|---|---|
| Adjustment Type | Teaching Method |
| Cable Length | 0.2 m |
| Cable Length | 7.87 in |
| Connection Method | Cable with Connector, M8 |
| Ingress Protection | IP67 |
| Light Source | RED (650nm) |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | NPN |
| Response Time | 500 µs |
| Sensing Distance [Max] | 62.992 in |
| Sensing Distance [Max] | 1.6 m |
| Sensing Distance [Min] | 100 mm |
| Sensing Distance [Min] | 3.937 " |
| Sensing Method | Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 139.00 | |
Description
General part information
603-11006 - FR 10-R-NS-KM3
Retroreflective Optical Sensor 3.937" ~ 62.992" (100mm ~ 1.6m) NPN
