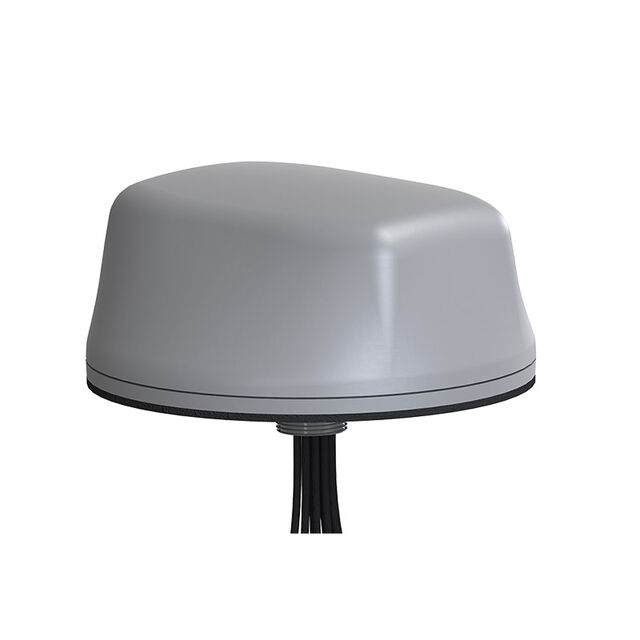

LTMWG946-A3CB3CW3JG2C-WHT-180
ActiveMobile Mark Antenna Solutions
11-CABLE 4X5G/LTE 6XWIFI6E GNSS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTMWG946-A3CB3CW3JG2C-WHT-180 |
|---|---|
| Antenna Type | Dome |
| Applications | Fixed Site Private Networks, Public Transportation, Fleet Management |
| Features | Cable - 4.572m, LNA |
| Frequency (Center/Band) | 6.05 GHz, 1.602 GHz, 2.45 GHz, 788.5 MHz, 1.561 GHz, 3.855 GHz, 1.575 GHz |
| Frequency Group | Wide Band |
| Frequency Range | 1.575 GHz, 1561 MHz, 1602 MHz |
| Frequency Range [Max] | 960 MHz, 2.5 GHz, 7.2 GHz |
| Frequency Range [Min] | 4.9 GHz, 1.71 GHz, 617 MHz, 2.4 GHz |
| Gain | 2 dBic, 5 dBi |
| Height (Max) | 60.45 mm |
| Height (Max) [Max] | 2.38 in |
| Ingress Protection | IP67 |
| Number of Bands | 7 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Navigation, WiFi, Cellular |
| Termination | RP-SMA, SMA |
| VSWR | 2, 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 587.50 | |
Description
General part information
LTMWG946-A3CB3CW3JG2C-WHT-180
RF ANTENNA Fixed Site Private Networks, Fleet Management, Public Transportation Dome RP-SMA, SMA Panel Mount
