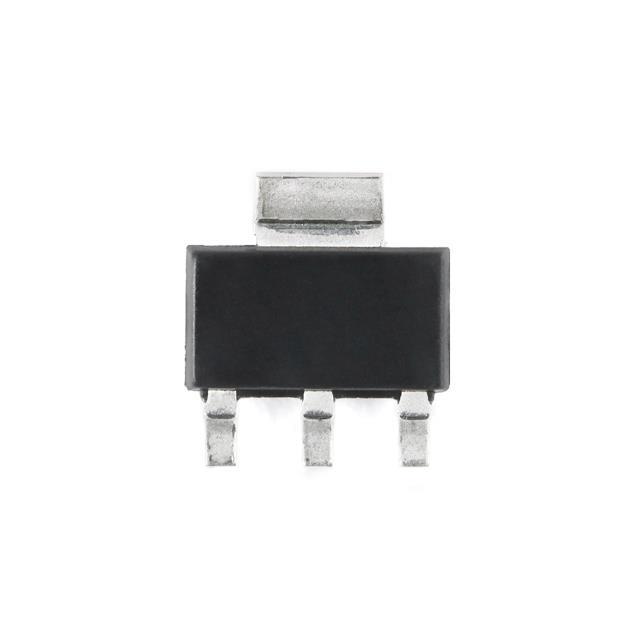

LD1117-3.3
ActiveUMW
SOT223-3L LINEAR VOLTAGE REGULAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LD1117-3.3
ActiveUMW
SOT223-3L LINEAR VOLTAGE REGULAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD1117-3.3 |
|---|---|
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 10 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-261AA, TO-261-4 |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75 dB |
| Supplier Device Package | SOT-223-3L |
| Voltage - Input (Max) [Max] | 12 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.50 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.40 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 2500 | $ 0.14 | ||
| 5000 | $ 0.13 | |||
| 12500 | $ 0.12 | |||
| 25000 | $ 0.11 | |||
| 62500 | $ 0.11 | |||
Description
General part information
LD1117-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3L
Documents
Technical documentation and resources
