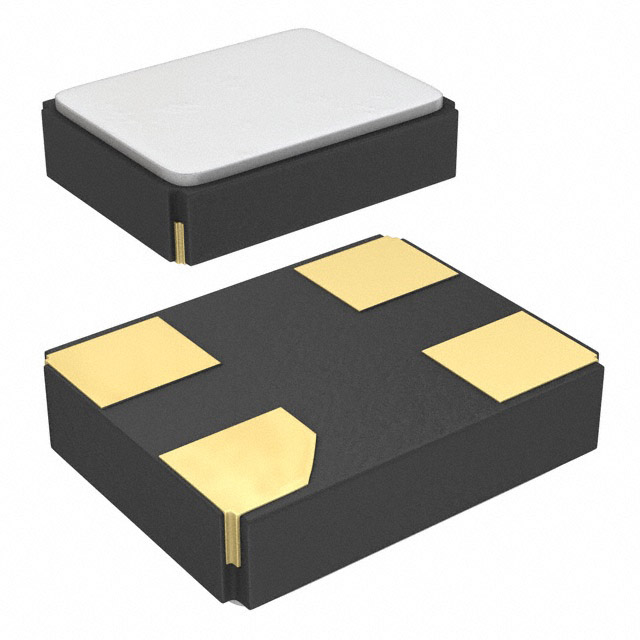

7V12000008
ActiveTXC CORPORATION
CRYSTAL 12.0000MHZ 10PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7V12000008
ActiveTXC CORPORATION
CRYSTAL 12.0000MHZ 10PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7V12000008 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 12 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
7V12000008
12 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
