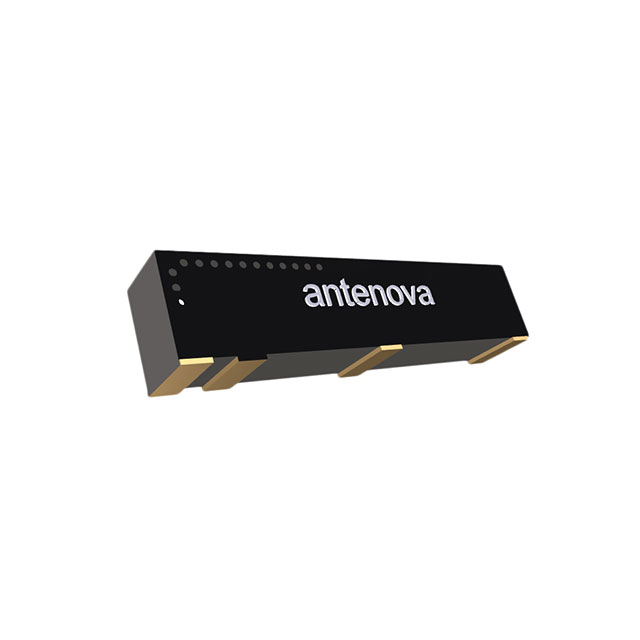

SR42W009
Antenova
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR42W009
Antenova
RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR42W009 |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN |
| Frequency (Center/Band) | 5.5 GHz, 2.4 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.8 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.1 GHz, 2.4 GHz |
| Gain | 5 dBi |
| Height (Max) [Max] | 0.173 in |
| Height (Max) [Max] | 4.4 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Return Loss | -7 dB |
| RF Family/Standard | WiFi |
| Termination | Solder |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.02 | |
| Digi-Reel® | 1 | $ 4.02 | ||
| Tape & Reel (TR) | 1000 | $ 2.26 | ||
| 2000 | $ 2.15 | |||
Description
General part information
SR42W009
RF ANTENNA WLAN Chip Solder Surface Mount
Documents
Technical documentation and resources
