2687SW0002
ActiveSouthwire
CORD, 10/3 SJTW 25' YELLOW LE SW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2687SW0002
ActiveSouthwire
CORD, 10/3 SJTW 25' YELLOW LE SW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2687SW0002 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | NEMA 5-15R |
| Color | Yellow |
| Cord Type | SJTW |
| Current Rating (Amps) | 15 A |
| Length [x] | 25 ft |
| Length [x] | 7.62 m |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 120 VDC |
| Wire Gauge | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 90.23 | |
Description
General part information
2687SW0002

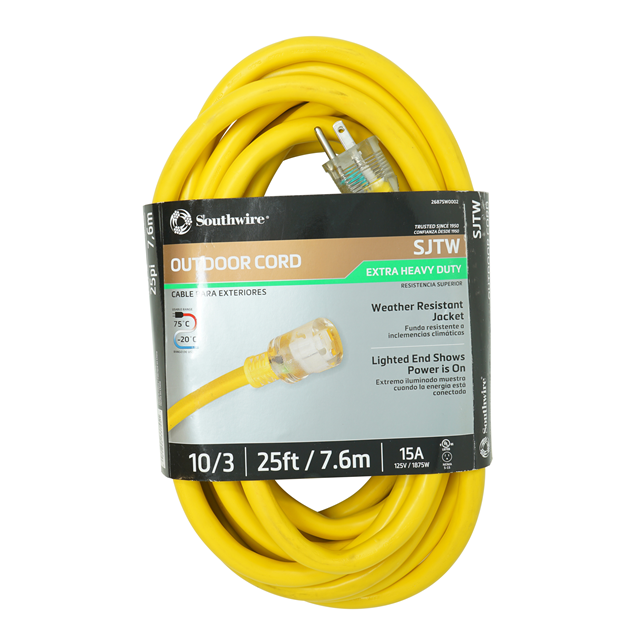

25.00' (7.62m) Power Cord Yellow NEMA 5-15P To NEMA 5-15R SJTW
Documents
Technical documentation and resources
