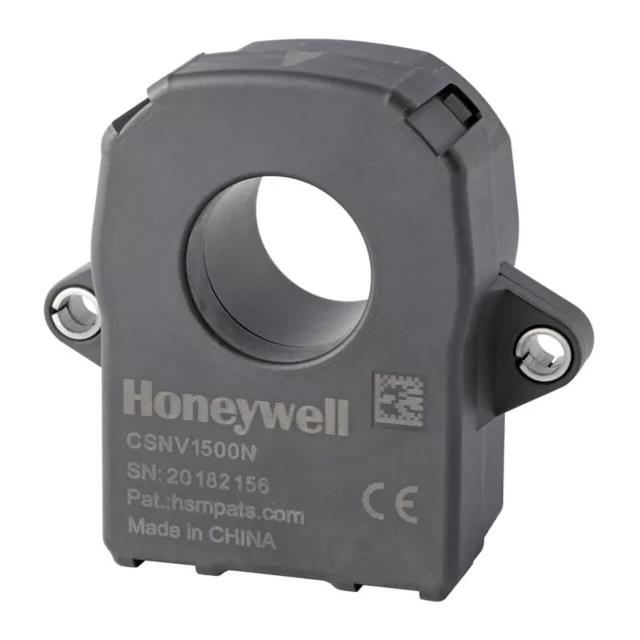

CSNV1500N-355
ActiveHoneywell Sensing and Productivity Solutions
CSNV1500 SERIES HALL-EFFECT CURR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSNV1500N-355
ActiveHoneywell Sensing and Productivity Solutions
CSNV1500 SERIES HALL-EFFECT CURR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSNV1500N-355 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 1500 A |
| Current - Supply (Max) [Max] | 200 mA |
| For Measuring | AC/DC |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CAN Bus |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensor Type | Hall Effect, Closed Loop |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 70.50 | |
| 5 | $ 65.35 | |||
| 10 | $ 63.44 | |||
| 25 | $ 62.15 | |||
| 50 | $ 62.15 | |||
Description
General part information
CSNV1500N-355
Current Sensor 1500A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
