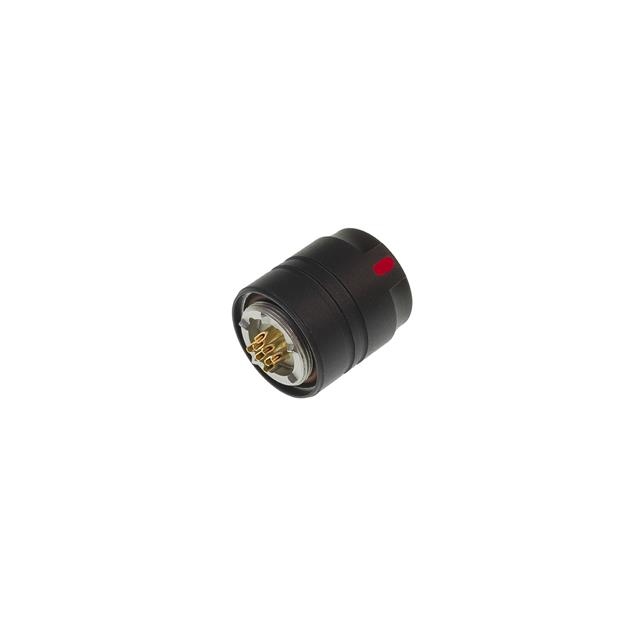

CMASD 5N08
ActiveBERNIER Connect
PUSH-PULL PLUG WITH 08 CTS POLAR
Deep-Dive with AI
Search across all available documentation for this part.
CMASD 5N08
ActiveBERNIER Connect
PUSH-PULL PLUG WITH 08 CTS POLAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMASD 5N08 |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 102.92 | |
| 10 | $ 87.49 | |||
| 100 | $ 75.13 | |||
Description
General part information
CMASD 5N08
8 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
No documents available
