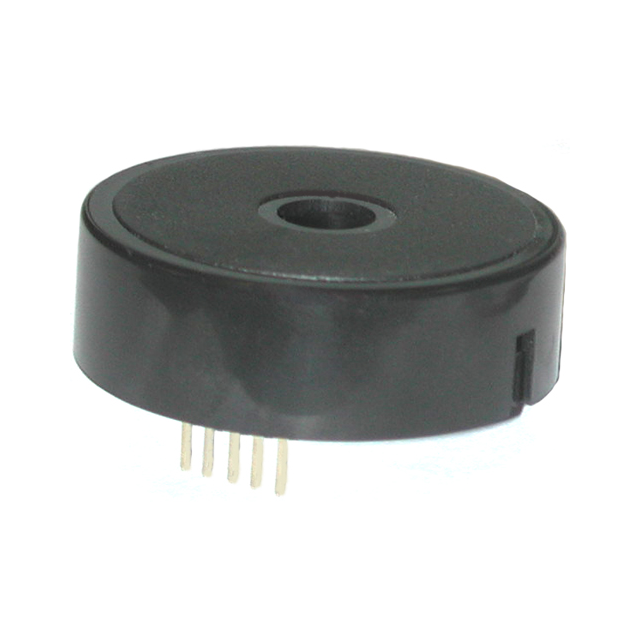

SBS12XLMCTPC
ActiveMallory Sonalert Products Inc.
BUZZER MAGNETIC 44.45MM TH
Deep-Dive with AI
Search across all available documentation for this part.
SBS12XLMCTPC
ActiveMallory Sonalert Products Inc.
BUZZER MAGNETIC 44.45MM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SBS12XLMCTPC |
|---|---|
| Approval Agency | UL, cUL |
| Current - Supply [Max] | 300 mA |
| Current - Supply [Min] | 40 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Duration | Variable |
| Frequency | 2.075 kHz |
| Height - Seated (Max) [Max] [z] | 14.99 mm |
| Height - Seated (Max) [Max] [z] | 0.59 in |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Pin Selectable |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Ratings | Medical |
| Size / Dimension | 44.45 mm |
| Size / Dimension [diameter] | 1.75 Dia |
| Sound Pressure Level (SPL) | 95 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage Range [Max] | 12 V |
| Voltage Range [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.56 | |
Description
General part information
SBS12XLMCTPC
Buzzers Indicator, Internally Driven Magnetic 40 ~ 300mA 2.075kHz 95dB @ 9V, 10cm Through Hole PC Pins
Documents
Technical documentation and resources
No documents available
