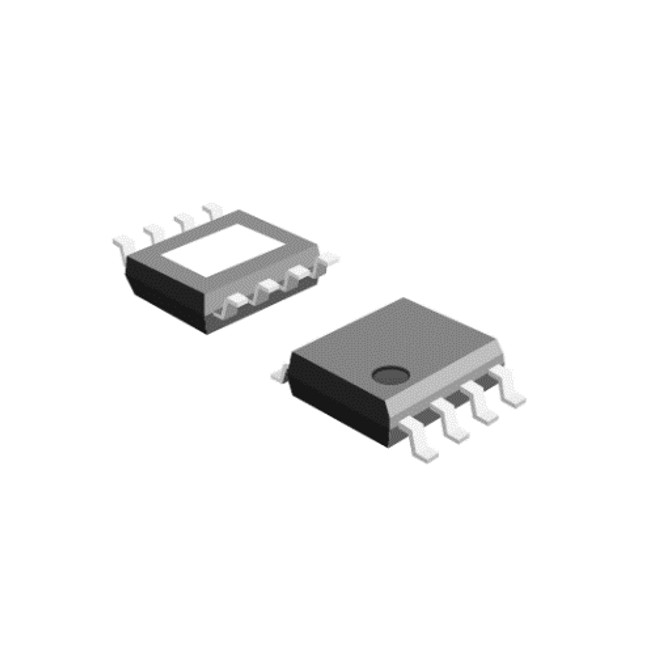

TPS7A7002DP
ActiveTAEJIN
IC REG LINEAR ADJ 3A SOP-8PP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS7A7002DP
ActiveTAEJIN
IC REG LINEAR ADJ 3A SOP-8PP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS7A7002DP |
|---|---|
| Control Features | Enable |
| Current - Output | 3 A |
| Current - Quiescent (Iq) | 3 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Protection Features | Under Voltage Lockout (UVLO), Over Temperature, Over Current |
| Supplier Device Package | 8-SOP-PP |
| Voltage - Input (Max) [Max] | 6.5 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 1.07 | |
Description
General part information
TPS7A7002DP
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 8-SOP-PP
