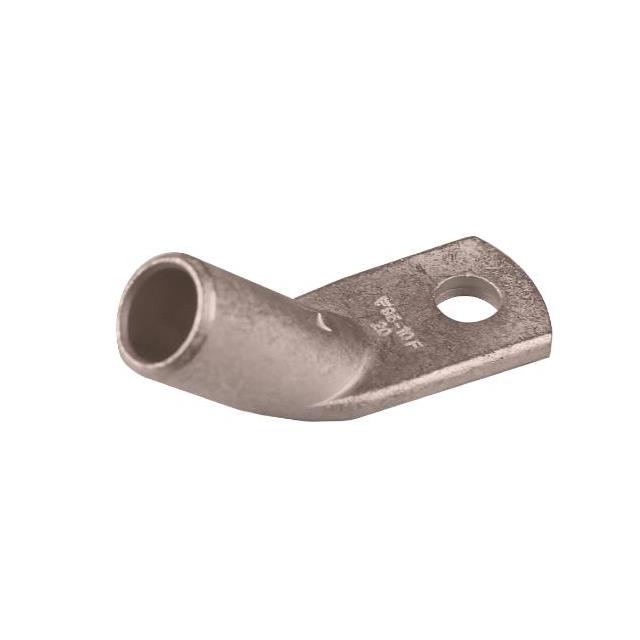

KRF95-12-45GR
ActiveElpress Inc.
BATTERY LUG 45 95 MM M12, 3/0
Deep-Dive with AI
Search across all available documentation for this part.
KRF95-12-45GR
ActiveElpress Inc.
BATTERY LUG 45 95 MM M12, 3/0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF95-12-45GR |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL listed |
| Insulation | Non-Insulated |
| Length - Overall [x] | 2.835 " |
| Length - Overall [x] | 72 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud |
| Tab Thickness | 4.9 mm |
| Tab Thickness | 0.193 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges [y] | 1.102 in |
| Width - Outer Edges [y] | 28 mm |
| Wire Gauge | 3 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 11.04 | |
Description
General part information
KRF95-12-45GR
Terminal Connector Rectangular Ring, Tubular 3 AWG M12 Stud
Documents
Technical documentation and resources
No documents available
