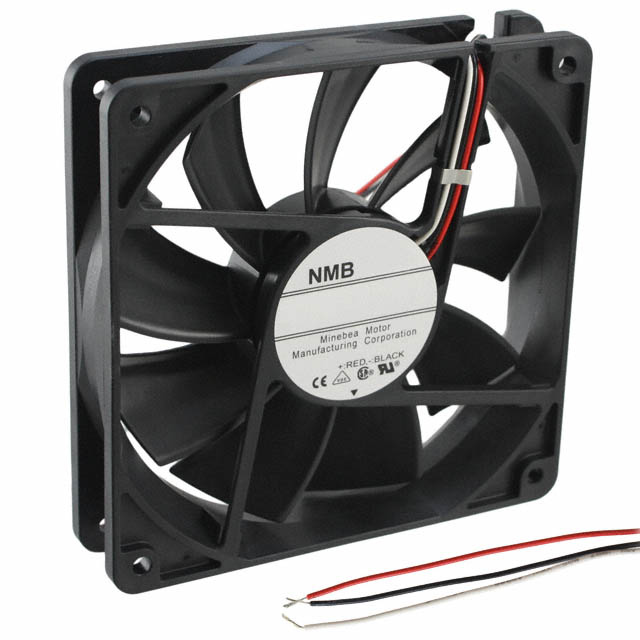

4710KL-04W-B39-B00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X25.5MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
4710KL-04W-B39-B00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X25.5MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4710KL-04W-B39-B00 |
|---|---|
| Air Flow | 88.2 CFM |
| Air Flow | 2.47 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.28 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 35 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.36 W |
| RPM | 2200 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Static Pressure | 32.1 Pa |
| Static Pressure | 0.129 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Weight | 180.08 g |
| Weight | 0.397 lb |
| Width [x] | 25.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
4710KL-04W-B39-B00
Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 88.2 CFM (2.47m³/min) 3 Wire Leads
