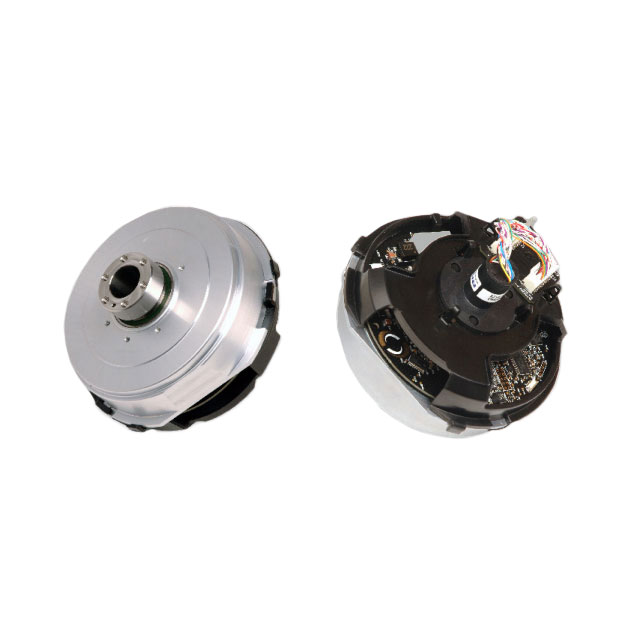

OVU00247
ActiveOverview Ltd
ATLAS IBLDC MOTOR WITH CONTINUOU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OVU00247 |
|---|---|
| Features | Integrated Controller |
| Function | Servomotor |
| Motor Type | Brushless (BLDC) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 75 RPM |
| Size / Dimension [diameter] | 125.2 mm |
| Size / Dimension [diameter] | 4.929 in |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 283.3 oz-in |
| Torque - Rated (oz-in / mNm) | 2000 mNm |
| Type | DC Motor |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 700.21 | |
| 5 | $ 682.71 | |||
Description
General part information
OVU00247
Brushless (BLDC) DC Motor Servomotor 75 RPM 48VDC
