HAE200-72S24UA
ActiveP-DUKE Technology
ISOLATED / 201.6W / VOUT:24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAE200-72S24UA
ActiveP-DUKE Technology
ISOLATED / 201.6W / VOUT:24
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAE200-72S24UA |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CE, cURus, UKCA, CB |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 8.4 A |
| Efficiency | 89 % |
| Features | Remote On/Off, Adjustable Output, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Half Brick |
| Power (Watts) | 202 W |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [z] | 13 mm |
| Size / Dimension [z] | 0.51 in |
| Standard Number | 62368-1 |
| Supplier Device Package | Half Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 16 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 220.42 | |
| 10 | $ 193.73 | |||
| 25 | $ 184.03 | |||
| 50 | $ 177.02 | |||
Description
General part information
HAE200-72S24UA

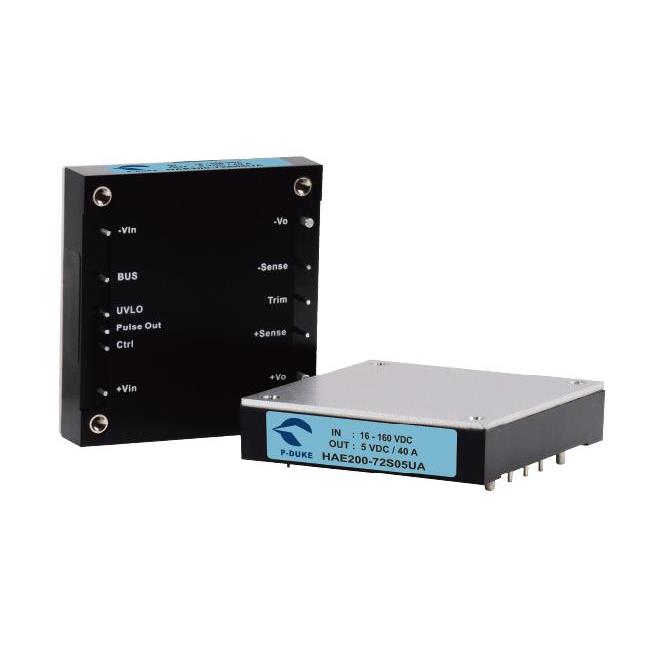

Isolated Module DC DC Converter 1 Output 24V 8.4A 16V - 160V Input
