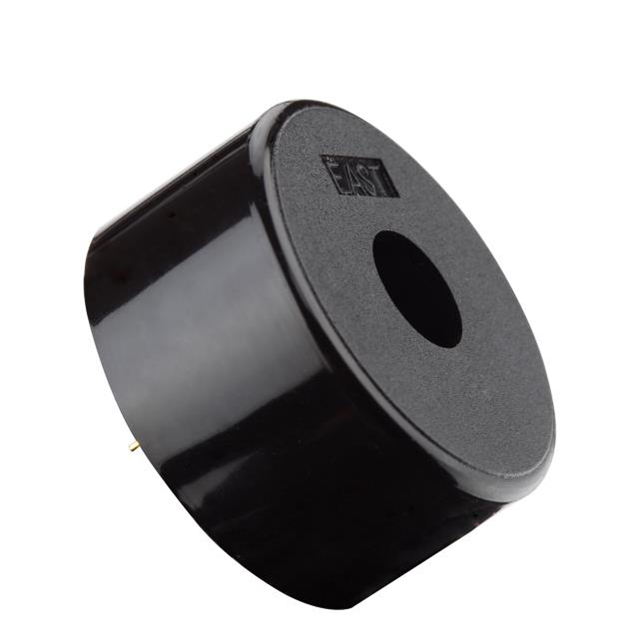

EFM-620
ActiveEast Electronics
BUZZER 9V 40MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM-620
ActiveEast Electronics
BUZZER 9V 40MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-620 |
|---|---|
| Current - Supply | 50 mA |
| Frequency | 3.2 kHz |
| Height - Seated (Max) [Max] [z] | 20 mm |
| Height - Seated (Max) [Max] [z] | 0.787 " |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Sound Pressure Level (SPL) | 90 dB |
| Termination | PC Pins |
| Voltage - Rated | 9 V |
| Voltage Range [Max] | 20 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.24 | |
| 100 | $ 1.48 | |||
| 1000 | $ 1.21 | |||
Description
General part information
EFM-620
Buzzers 9 V 50mA 3.2kHz 90dB @ 7.5V, 300cm Through Hole PC Pins
