12.85548
ActiveGeyer Electronic America, Inc.

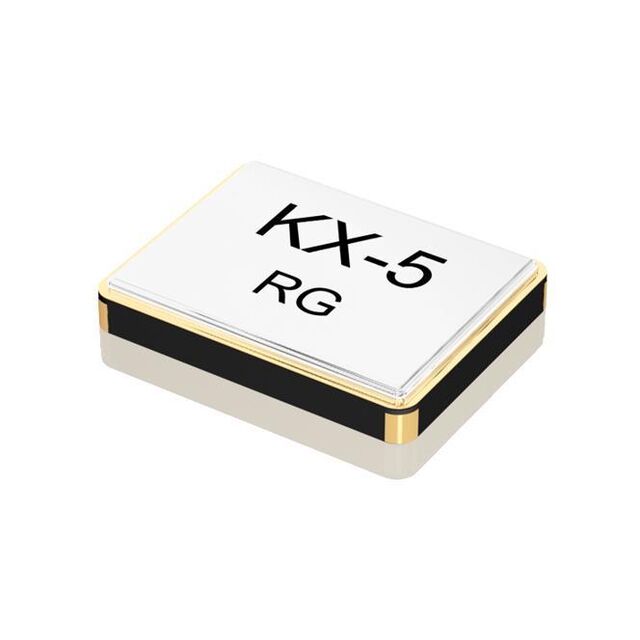

CRYSTAL 40.0 MHZ SMD KX-5F 8PF,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12.85548
ActiveGeyer Electronic America, Inc.
CRYSTAL 40.0 MHZ SMD KX-5F 8PF,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12.85548 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 40 MHz |
| Frequency Stability | 100 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.72 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.72 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| Tape & Reel (TR) | 1000 | $ 0.47 | ||
| 3000 | $ 0.45 | |||
| 5000 | $ 0.44 | |||
| 10000 | $ 0.42 | |||
Description
General part information
12.85548
40 MHz ±30ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
