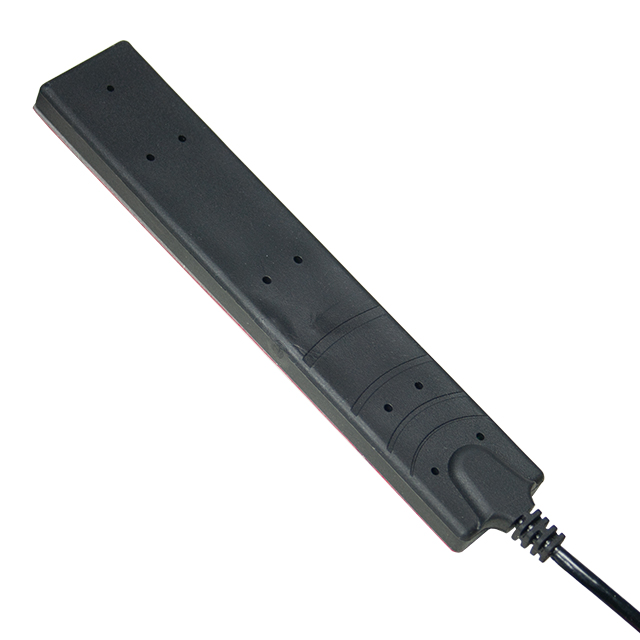

ANT-2/5-VDP-2000-SMA
ActiveTE Connectivity Linx
RF ANT 2.4GHZ-2.5GHZ WHIP CTR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-2/5-VDP-2000-SMA
ActiveTE Connectivity Linx
RF ANT 2.4GHZ-2.5GHZ WHIP CTR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2/5-VDP-2000-SMA |
|---|---|
| Antenna Type | Flat Bar |
| Applications | U-NII, 802.15.4, Zigbee™, Bluetooth, 802.11, Wi-Fi, Thread |
| Features | Cable - 2m |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 4.5 dBi |
| Height (Max) | 6.71 mm |
| Height (Max) [Max] | 0.264 in |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.29 | |
| 10 | $ 12.26 | |||
| 25 | $ 10.74 | |||
| 100 | $ 9.35 | |||
Description
General part information
ANT-2/5-VDP-2000-SMA
2.45GHz Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII Flat Bar RF Antenna 2.4GHz ~ 2.5GHz 4.5dBi SMA Male Adhesive
