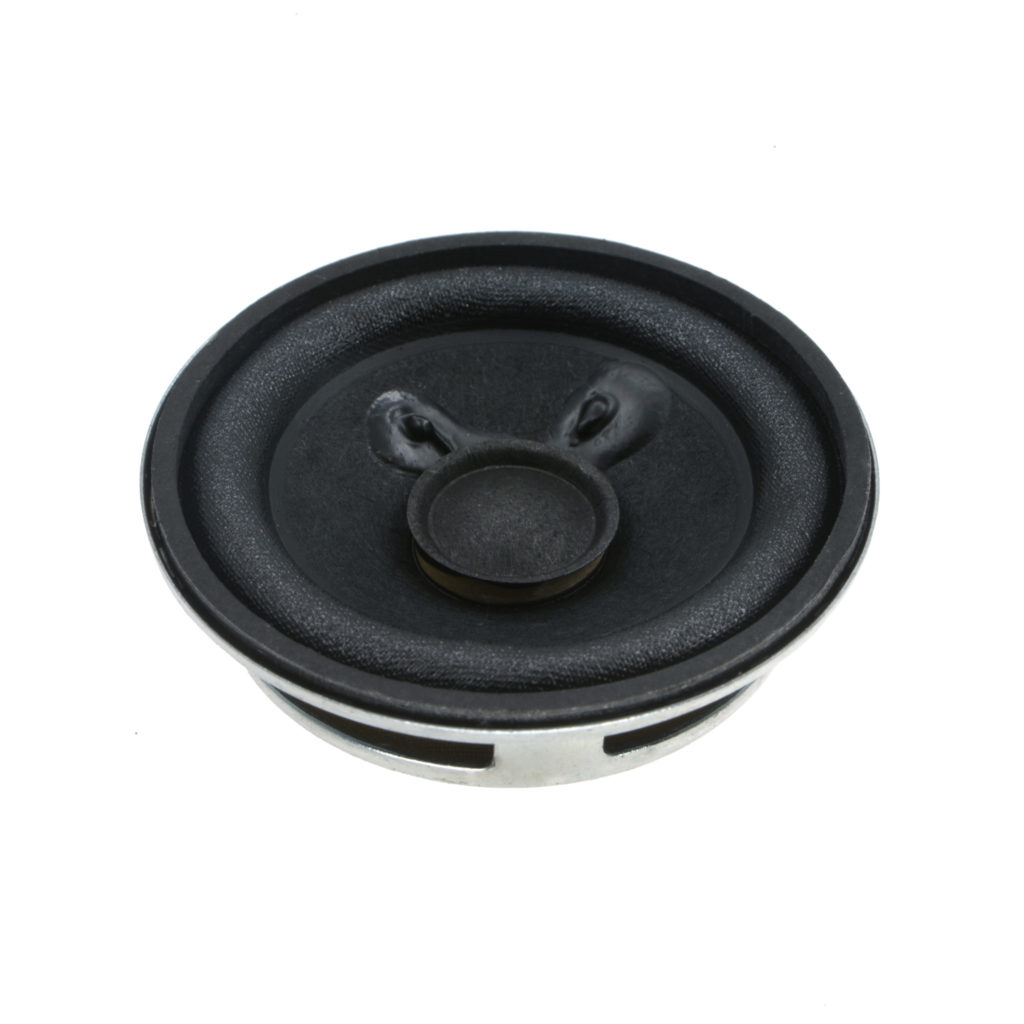

D0050008NC22JAR
ActiveStetron
LOUDSPEAKER 50MM ; 8 OHMS, 0.5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D0050008NC22JAR
ActiveStetron
LOUDSPEAKER 50MM ; 8 OHMS, 0.5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D0050008NC22JAR |
|---|---|
| Distortion Rating [Max] | 5 % |
| Efficiency - dBA | 88 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 240 Hz |
| Frequency Range [Max] | 6 kHz |
| Frequency Range [Min] | 240 Hz |
| Height - Seated (Max) [Max] | 21.5 mm |
| Height - Seated (Max) [Max] | 0.846 in |
| Impedance | 8 Ohms |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension [diameter] | 1.969 in |
| Size / Dimension [diameter] | 50 mm |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.17 | |
| 10 | $ 10.98 | |||
| 50 | $ 10.32 | |||
Description
General part information
D0050008NC22JAR
8 Ohms General Purpose Speaker 500 mW 240 Hz ~ 6 kHz Top Round
