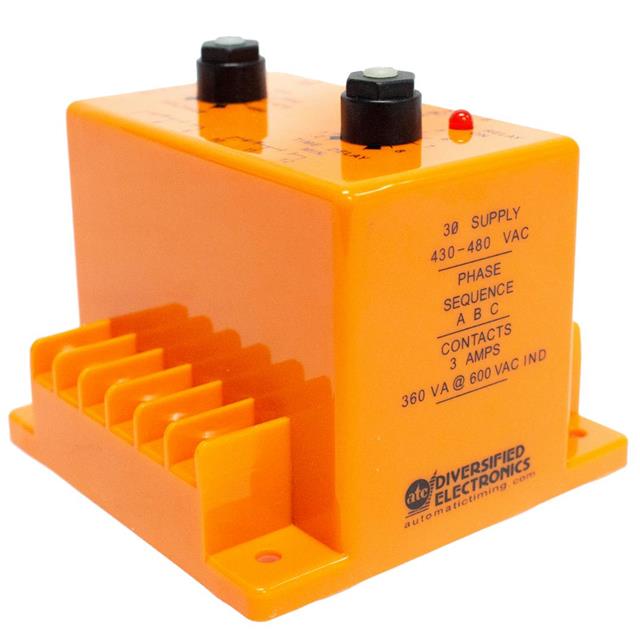

SLJ-440-ALE
ActiveATC-Diversified Electronics
SLJ SERIES PHASE SEQUENCE UNDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLJ-440-ALE
ActiveATC-Diversified Electronics
SLJ SERIES PHASE SEQUENCE UNDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLJ-440-ALE |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 3 A, 600 VAC |
| Delay Time [Max] | 8 Min |
| Delay Time [Min] | 2 s |
| Mounting Type | Chassis Mount |
| Trip Range [Max] | 480 V AC |
| Trip Range [Min] | 430 V AC |
| Trip Status | Energized High/Low |
| Type | Phase Sequence, Phase Loss, Voltage Sensing AC |
| Voltage - Supply | 440 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 333.23 | |
Description
General part information
SLJ-440-ALE
Phase Loss, Phase Sequence, Voltage Sensing AC 440VAC
Documents
Technical documentation and resources
