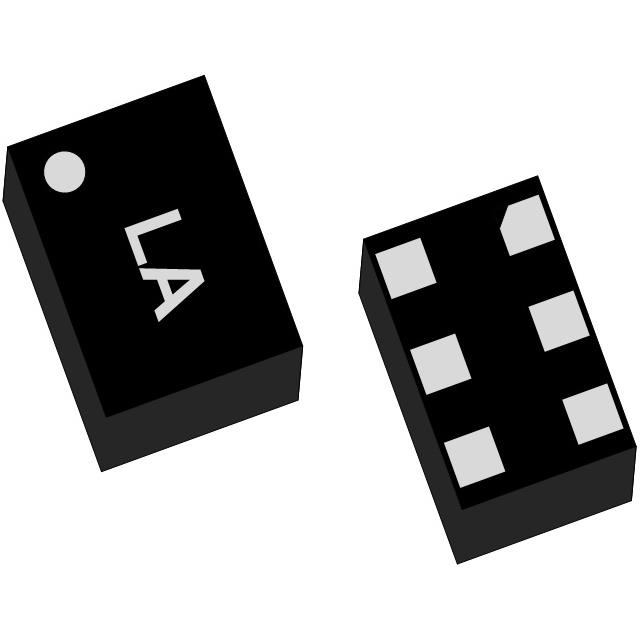

BHWL160
ActiveBHW Technologies
RF LNA GPS GNSS L1 L2 L5 1.45X1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BHWL160
ActiveBHW Technologies
RF LNA GPS GNSS L1 L2 L5 1.45X1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BHWL160 |
|---|---|
| Current - Supply | 6 mA |
| Frequency [Max] | 2 GHz |
| Frequency [Min] | 600 MHz |
| Gain | 15 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 0.7 dB |
| P1dB | -5.5 dBm |
| Package / Case | 6-UFDFN |
| RF Type | GNSS |
| Supplier Device Package | 6-DFN |
| Supplier Device Package [x] | 1.45 |
| Supplier Device Package [y] | 1 |
| Test Frequency [Max] | 1.61 GHz |
| Test Frequency [Min] | 1.55 GHz |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.69 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.77 | |||
| 25 | $ 0.69 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 3000 | $ 0.38 | ||
| 6000 | $ 0.36 | |||
| 15000 | $ 0.35 | |||
Description
General part information
BHWL160
RF Amplifier IC GNSS 600MHz ~ 2GHz 6-DFN (1.45x1)
