F4-20
ActiveTRIAD MAGNETICS

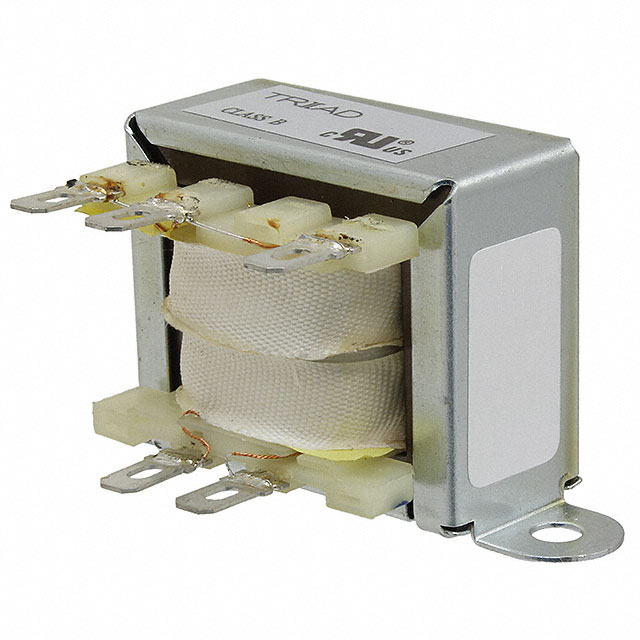

PWR XFMR LAMINATED 6VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
F4-20
ActiveTRIAD MAGNETICS
PWR XFMR LAMINATED 6VA CHAS MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | F4-20 |
|---|---|
| Center Tap | True |
| Current - Output (Max) [Max] | 300 mA |
| Height - Seated (Max) [Max] [z] | 34.93 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 6 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension [x] | 60.33 mm |
| Size / Dimension [y] | 1.25 in |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 20 V |
| Weight | 0.44 lb |
| Weight | 199.58 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.33 | |
Description
General part information
F4-20
PWR XFMR LAMINATED 6VA CHAS MT
