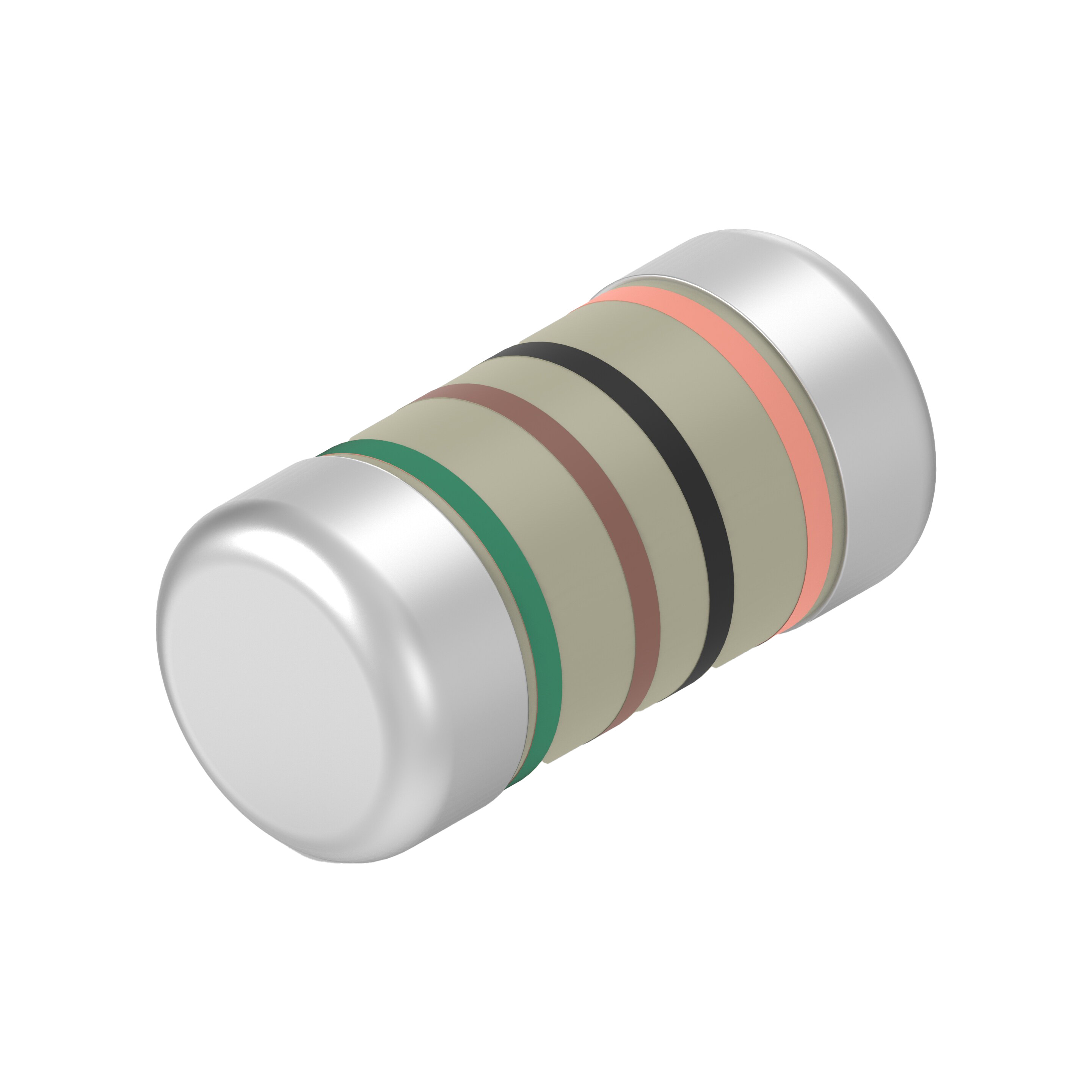

SMA-Q0102BTCP147R
ActiveTE Connectivity Passive Product
MELF SMA-Q 147R 0.1% 25PPM 0102
Deep-Dive with AI
Search across all available documentation for this part.
SMA-Q0102BTCP147R
ActiveTE Connectivity Passive Product
MELF SMA-Q 147R 0.1% 25PPM 0102
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-Q0102BTCP147R |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | MELF, 0102 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Ratings | AEC-Q200 |
| Resistance | 147 Ohms |
| Size / Dimension [diameter] | 0.043 in |
| Size / Dimension [diameter] | 1.1 mm |
| Size / Dimension [x] | 2.2 mm |
| Size / Dimension [x] | 0.087 in |
| Supplier Device Package | 0102 |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.59 | |
Description
General part information
SMA-Q0102BTCP147R
147 Ohms ±0.1% 0.2W, 1/5W Chip Resistor MELF, 0102 Automotive AEC-Q200 Thin Film
Documents
Technical documentation and resources
No documents available
