0729-1757-99
ActiveThe Fredericks Company

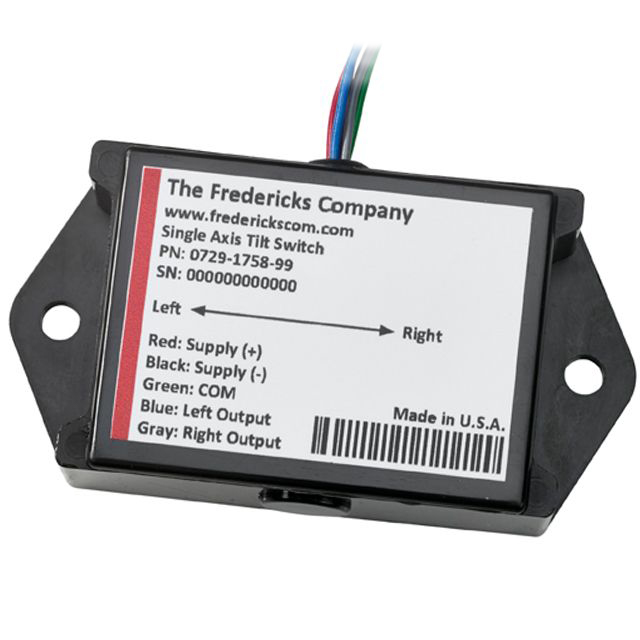

TILT SWITCH OC 45DEG 1AXS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0729-1757-99
ActiveThe Fredericks Company
TILT SWITCH OC 45DEG 1AXS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0729-1757-99 |
|---|---|
| Current - Output | 200 mA |
| Mounting Type | Chassis Mount |
| Operating Angle | 45 ° |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Collector |
| Package / Case | Module |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 125.90 | |
| 10 | $ 107.03 | |||
| 100 | $ 91.34 | |||
| 500 | $ 83.53 | |||
| 1000 | $ 77.54 | |||
Description
General part information
0729-1757-99
TILT SWITCH OC 45DEG 1AXS
Documents
Technical documentation and resources
