GRP084949-3.7V-135MAH
ActiveGrepow Inc.

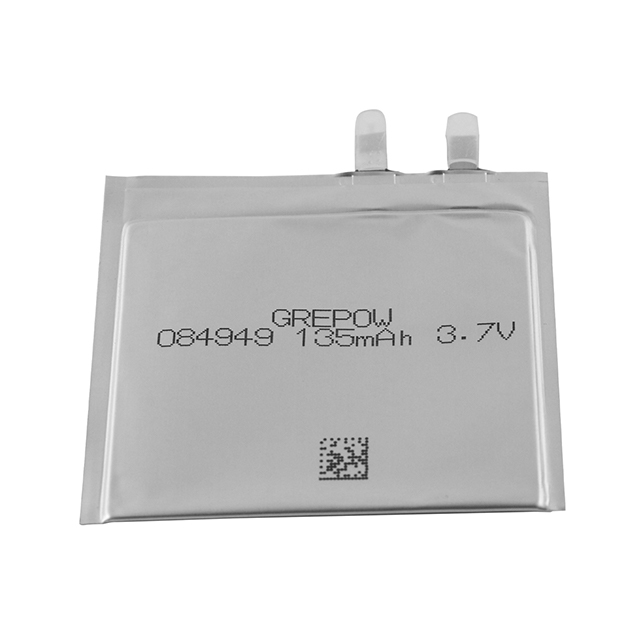

BATTERY LITH POLY 3.7V 135MAH
Deep-Dive with AI
Search across all available documentation for this part.
GRP084949-3.7V-135MAH
ActiveGrepow Inc.
BATTERY LITH POLY 3.7V 135MAH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRP084949-3.7V-135MAH |
|---|---|
| Battery Chemistry | Lithium Polymer |
| Capacity | 135 mAh |
| Discharge Rate | 67.5 mA |
| Size / Dimension [x] | 49 mm |
| Size / Dimension [x] | 1.93 in |
| Size / Dimension [y] | 49 mm |
| Size / Dimension [y] | 1.93 in |
| Size / Dimension [z] | 0.03 in |
| Size / Dimension [z] | 0.8 mm |
| Standard Charge Current | 135 mA |
| Standard Charge Time | 7 Hrs |
| Voltage - Rated | 3.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.99 | |
Description
General part information
GRP084949-3.7V-135MAH
3.7 V Lithium Polymer Battery Rechargeable (Secondary) 135mAh
Documents
Technical documentation and resources
No documents available
