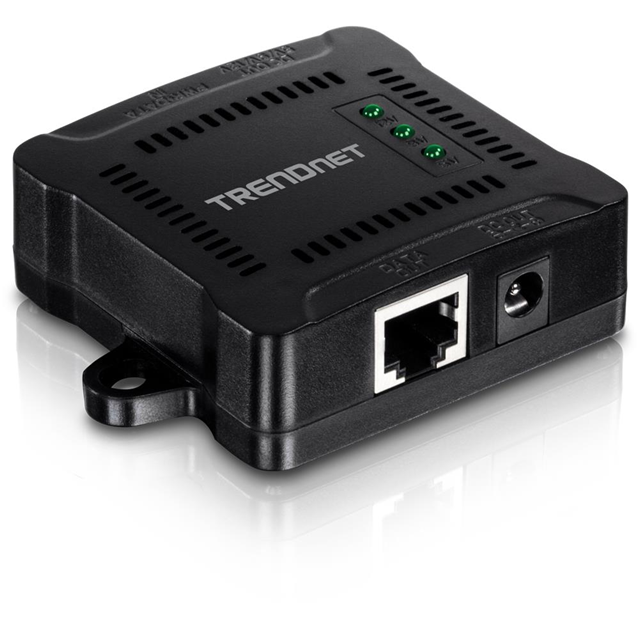

TRE TPE-104GS
ObsoleteTrendnet
SPLITTER GIGABIT POE
Deep-Dive with AI
Search across all available documentation for this part.
TRE TPE-104GS
ObsoleteTrendnet
SPLITTER GIGABIT POE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRE TPE-104GS |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3af, IEEE802.3ab |
| Data Rate | 2 Gbps |
| Input Connector | IEC 320-C14 (Power), RJ45 (Data) |
| Mounting Type | Wall Mount |
| Number of Ports | 2 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45, 2.5mm Plug |
| Size / Dimension [x] | 83.8 mm |
| Size / Dimension [x] | 3.3 " |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [z] | 22.1 mm |
| Size / Dimension [z] | 0.87 in |
| Type | Splitter |
| Voltage - Output | 12 V, 5 V, 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 28.00 | |
Description
General part information
TRE TPE-104GS
5V, 9V, 12V Power Over Ethernet (POE) 2 Port Splitter 2 Gbps Data Rate
Documents
Technical documentation and resources
No documents available
