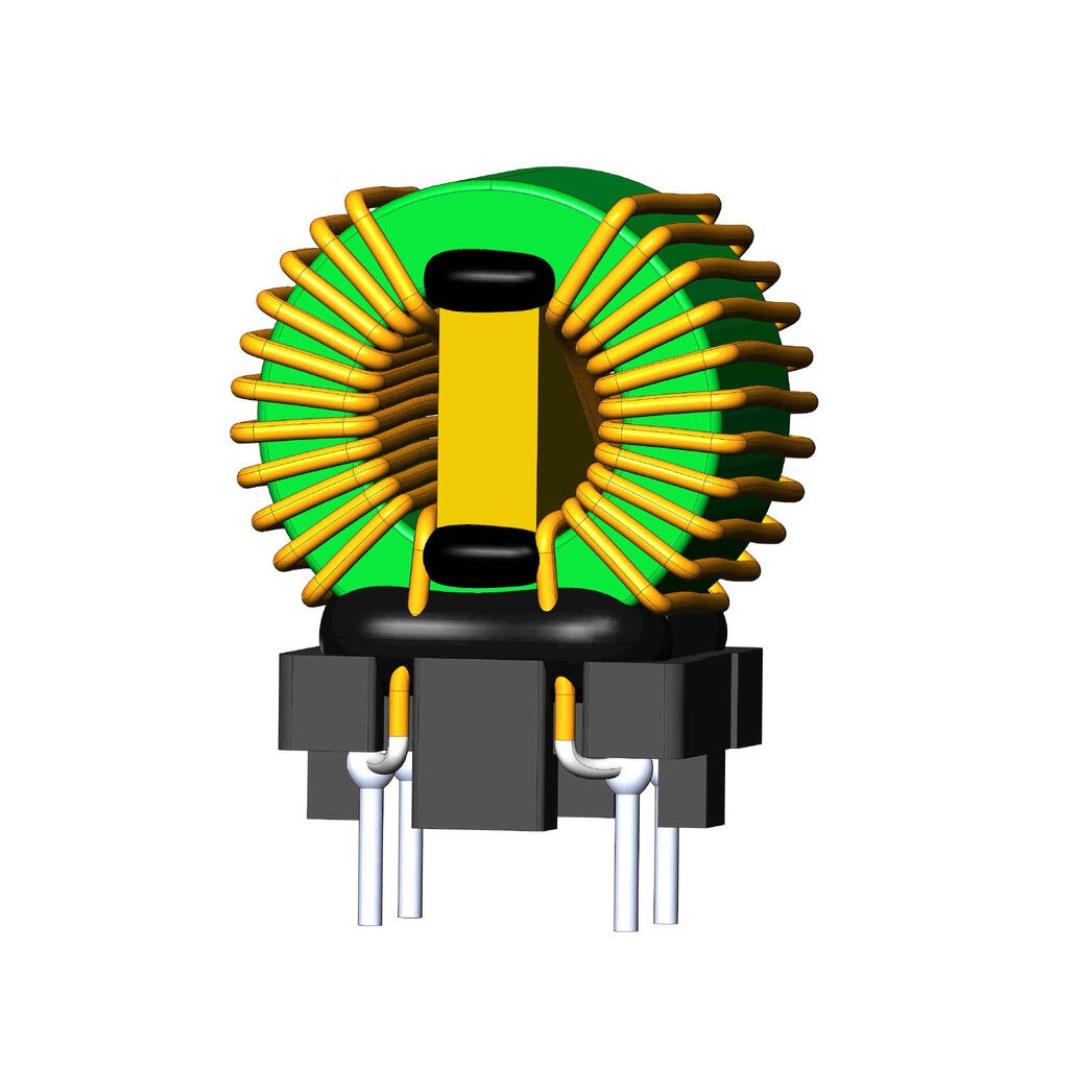

C201021A-102NHF
ActiveITG Electronics, Inc.
CMC 1.0MH 30% 30.0M 3.0A MAX.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C201021A-102NHF
ActiveITG Electronics, Inc.
CMC 1.0MH 30% 30.0M 3.0A MAX.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C201021A-102NHF |
|---|---|
| Current Rating (Max) [Max] | 3 A |
| DC Resistance (DCR) (Max) [Max] | 30 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 22 mm |
| Height (Max) [Max] | 0.866 in |
| Inductance @ Frequency | 1 mH, 10 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 17.5 mm |
| Size / Dimension [x] | 0.689 in |
| Size / Dimension [y] | 0.512 in |
| Size / Dimension [y] | 13 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.00 | |
| 5 | $ 4.50 | |||
| 10 | $ 4.00 | |||
| 50 | $ 3.50 | |||
Description
General part information
C201021A-102NHF
1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 3A DCR 30mOhm
