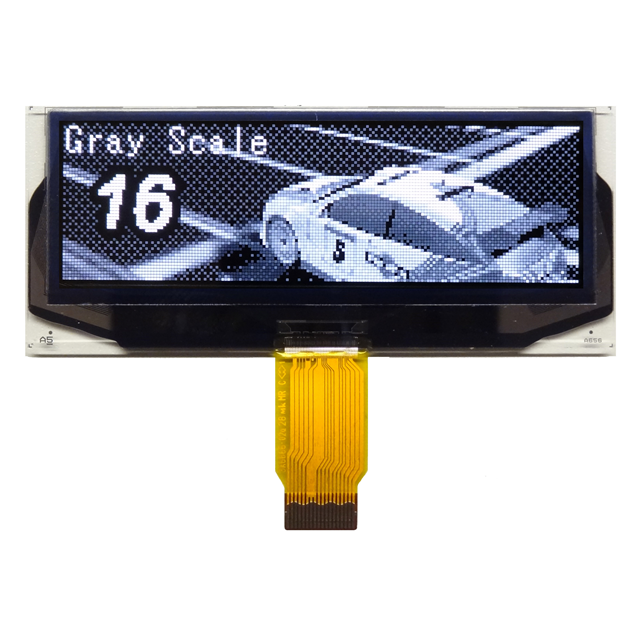

ELW2701AA
ActiveFutaba Corporation
176X52 GRAYSCALE, 2.7" OLED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELW2701AA
ActiveFutaba Corporation
176X52 GRAYSCALE, 2.7" OLED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELW2701AA |
|---|---|
| Diagonal Screen Size | 2.7 " |
| Diagonal Screen Size | 68.58 mm |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.37 mm |
| Dot Pitch [y] | 0.37 mm |
| Dot Pixels [x] | 176 |
| Dot Pixels [y] | 52 |
| Graphics Color | White |
| Interface | SPI |
| Viewing Area [x] | 65.79 mm |
| Viewing Area [y] | 19.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.79 | |
| 5 | $ 30.82 | |||
| 10 | $ 30.81 | |||
Description
General part information
ELW2701AA
Graphic LCD Display Module White OLED - Passive Matrix SPI 2.7" (68.58mm) 176 x 52
Documents
Technical documentation and resources
