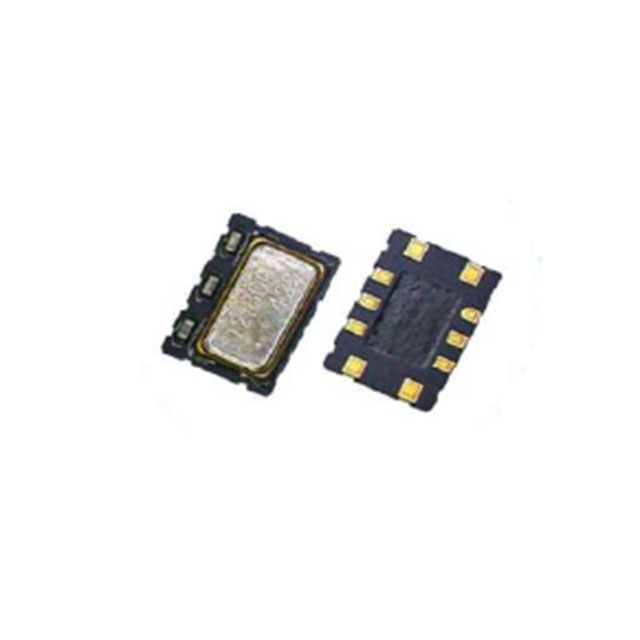

TSEATLJANF-10.000000
ActiveTaitien
XTAL OSC VCTCXO 10.0000MHZ CMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSEATLJANF-10.000000
ActiveTaitien
XTAL OSC VCTCXO 10.0000MHZ CMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSEATLJANF-10.000000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 10 MHz |
| Frequency Stability | 4.6 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 22.67 | |
Description
General part information
TSEATLJANF-10.000000
10 MHz VCTCXO CMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Documents
Technical documentation and resources
