37533
UnknownSchott Corporation

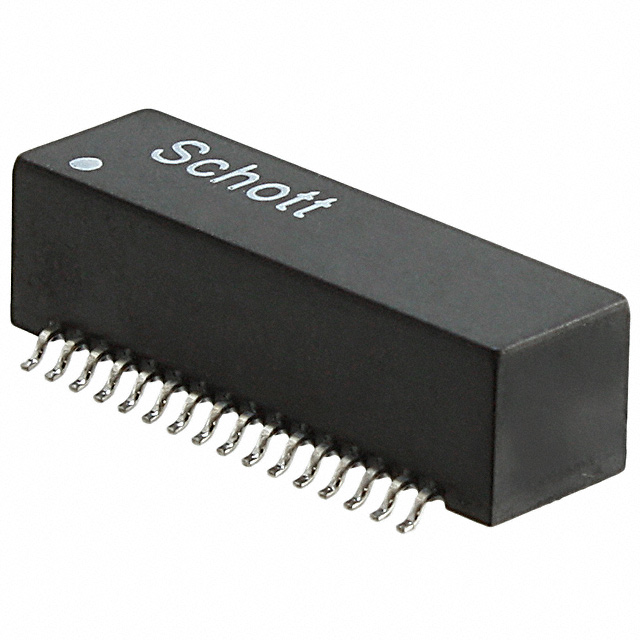

TRANSF QUAD T1/E1 1:1.36&1:2 SMD
Deep-Dive with AI
Search across all available documentation for this part.
37533
UnknownSchott Corporation
TRANSF QUAD T1/E1 1:1.36&1:2 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 37533 |
|---|---|
| Height - Seated (Max) [Max] | 7.37 mm |
| Height - Seated (Max) [Max] [z] | 0.29 " |
| Inductance | 1.2 mH |
| Mounting Type | Surface Mount |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.62 mm |
| Transformer Type | T1/E1 |
| Turns Ratio - Primary:Secondary [custom] | 1.36 |
| Turns Ratio - Primary:Secondary [custom] | 1 |
| Turns Ratio - Primary:Secondary [custom] | 2 |
| Turns Ratio - Primary:Secondary [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.74 | |
| 10 | $ 2.66 | |||
| 25 | $ 2.63 | |||
| 50 | $ 2.60 | |||
| 100 | $ 2.58 | |||
| 250 | $ 2.55 | |||
| Tape & Reel (TR) | 500 | $ 2.51 | ||
Description
General part information
37533
1.2mH T1/E1 (Quad) Pulse Transformer 1:1.36, 1:2 Surface Mount
