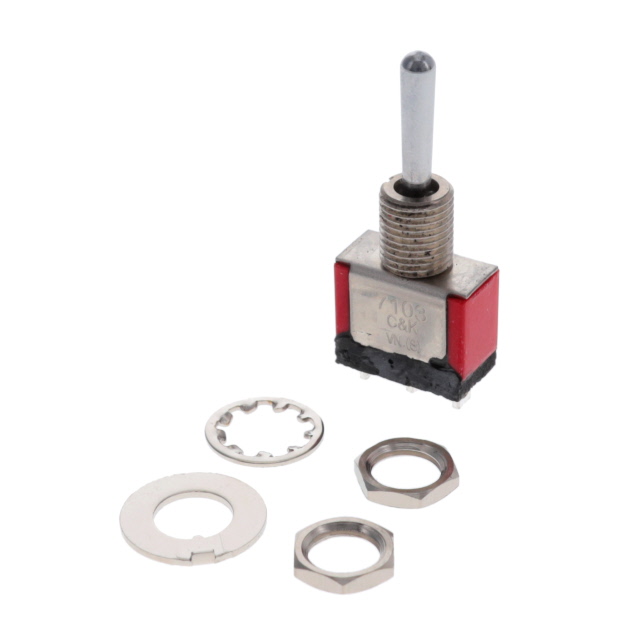

7201K9ALE
ObsoleteSWITCH TOGGLE DPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.

7201K9ALE
ObsoleteSWITCH TOGGLE DPDT 5A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7201K9ALE |
|---|---|
| Actuator Length [x] | 17.88 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Locking Lever |
| Bushing Thread | Unthreaded |
| Circuit | DPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 100000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
7201K9ALE
With a wide variety of actuator and termination options available, the 7000 series miniature toggle switches from C&K, which now includes an optional knurled cap on the locking lever options, are used by designers throughout the medical equipment and telecommunications industry to give product designs the long-lasting, high performance switch they need to succeed. The 7000 series are epoxy terminal-seal compatible with bottom wash cleaning and are engineered to be both multi-pole and multi-position, ensuring a perfect fit, no matter the design specifications.
Documents
Technical documentation and resources
