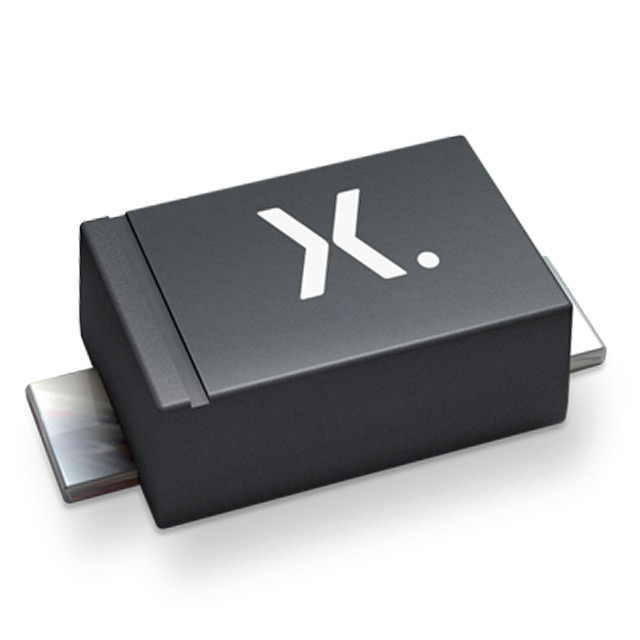

PTVS14VS1UR/8X
ActiveFreescale Semiconductor - NXP
TVS DIODE 14VWM 23.2VC SOD123W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTVS14VS1UR/8X
ActiveFreescale Semiconductor - NXP
TVS DIODE 14VWM 23.2VC SOD123W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTVS14VS1UR/8X |
|---|---|
| Current - Peak Pulse (10/1000µs) | 17.2 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-123W |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | SOD-123W |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 15.6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 23.2 V |
| Voltage - Reverse Standoff (Typ) | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PTVS14VS1UR/8X
23.2V Clamp 17.2A Ipp Tvs Diode Surface Mount SOD-123W
