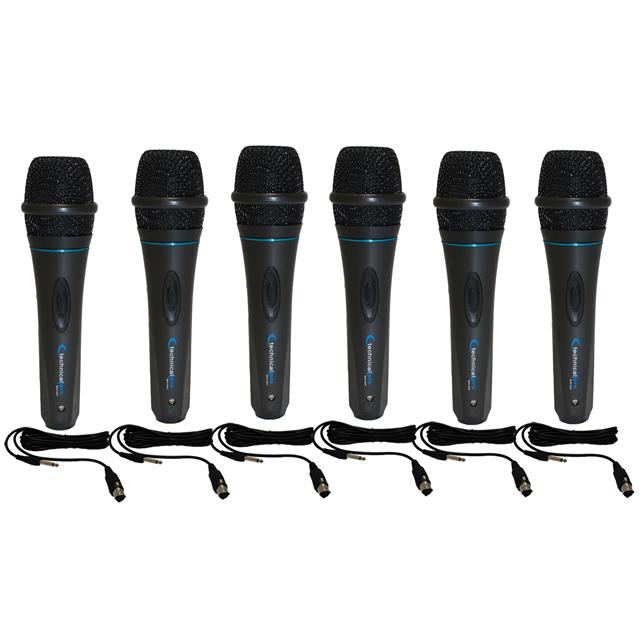

TPMK75-6
ActiveTechnical Pro
MIC ANALOG CARDIOID -72DB
Deep-Dive with AI
Search across all available documentation for this part.
TPMK75-6
ActiveTechnical Pro
MIC ANALOG CARDIOID -72DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPMK75-6 |
|---|---|
| Direction | Unidirectional |
| Frequency Range [Max] | 15 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) [Max] | 6 in |
| Height (Max) [Max] | 152.4 mm |
| Impedance | 600 Ohms |
| Output Type | Analog |
| Port Location | Bottom |
| Sensitivity | -72 dB |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 31.75 mm |
| Size / Dimension [y] | 1.25 in |
| Termination | Solder Pads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 59.99 | |
Description
General part information
TPMK75-6
50 Hz ~ 15 kHz Analog Microphone Unidirectional (-72dB ±3dB) Solder Pads
Documents
Technical documentation and resources
No documents available
