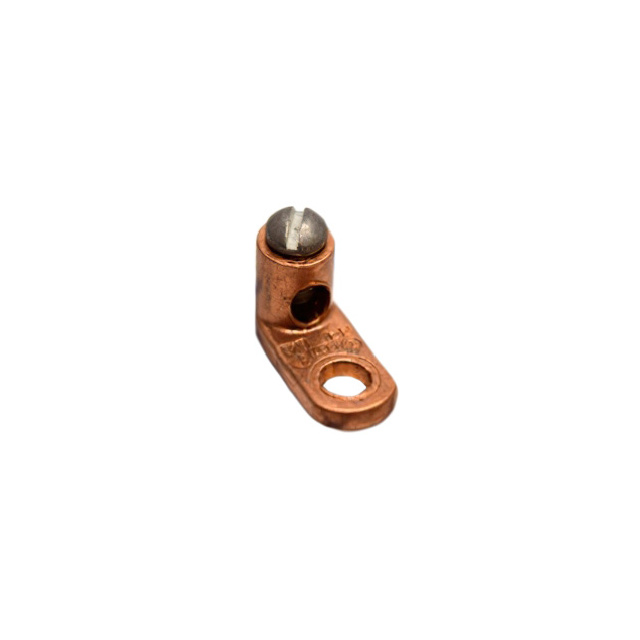

L35
ActiveBlackburn, a T & B Brand
MECHANICAL CONNECTOR, 13/64" STU
Deep-Dive with AI
Search across all available documentation for this part.
L35
ActiveBlackburn, a T & B Brand
MECHANICAL CONNECTOR, 13/64" STU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L35 |
|---|---|
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 20.64 mm |
| Length - Overall [x] | 0.813 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [x] | 0.375 in |
| Width - Outer Edges [x] | 9.53 mm |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.89 | |
Description
General part information
L35
Ring Terminal Connector Circular 14 AWG Crimp
Documents
Technical documentation and resources
No documents available
