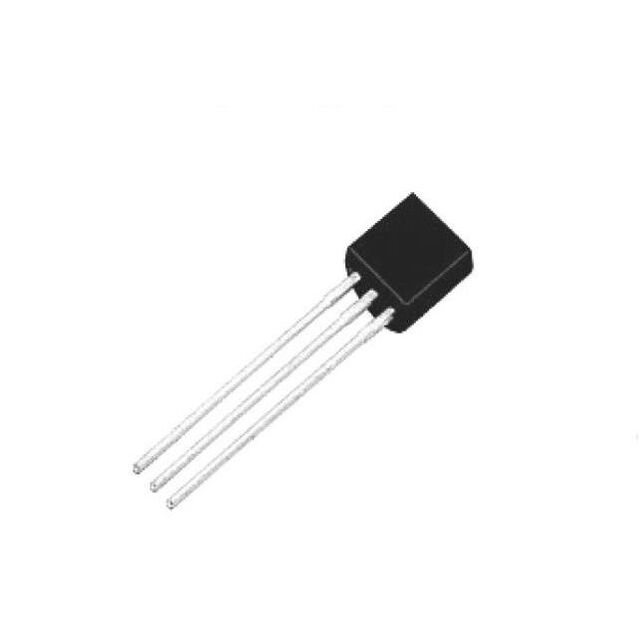

LM79L05
ActiveTAEJIN
IC REG LINEAR -5V 100MA TO92-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM79L05
ActiveTAEJIN
IC REG LINEAR -5V 100MA TO92-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM79L05 |
|---|---|
| Current - Output | 100 mA |
| Current - Quiescent (Iq) | 6 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Negative |
| Output Type | 1.81 mOhm |
| Package / Case | TO-226-3, TO-92-3 |
| PSRR | 49 dB |
| Supplier Device Package | TO-92 |
| Voltage - Input (Max) [Max] | -20 V |
| Voltage - Output (Min/Fixed) [Min] | -5 V |
| Voltage Dropout (Max) [Max] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.06 | |
Description
General part information
LM79L05
Linear Voltage Regulator IC Negative Fixed 1 Output 100mA TO-92
