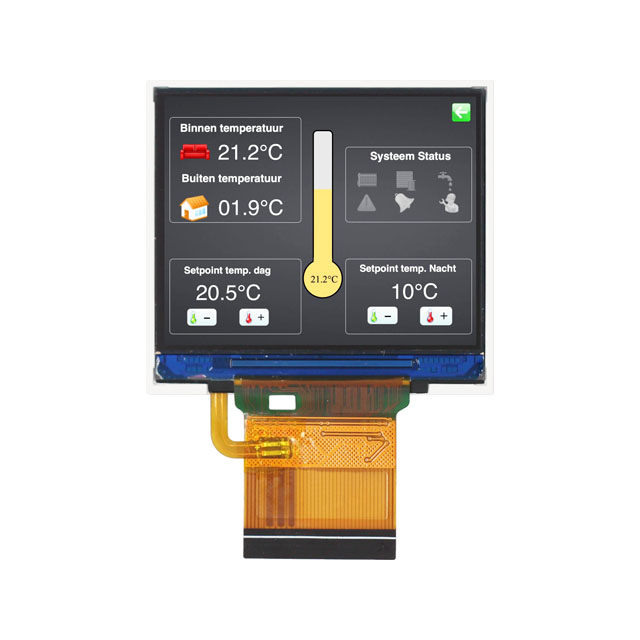

DLC0200CCP04DF-2
ActiveDLC Display Co.,Ltd
2" IPS TFT 480X360
Deep-Dive with AI
Search across all available documentation for this part.
DLC0200CCP04DF-2
ActiveDLC Display Co.,Ltd
2" IPS TFT 480X360
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0200CCP04DF-2 |
|---|---|
| Backlight | LED |
| Controller Type | ST7701S |
| Diagonal Screen Size | 50.8 mm |
| Diagonal Screen Size | 2 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [x] | 0.09 mm |
| Dot Pitch [y] | 0.09 mm |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 360 pixels |
| Graphics Color | Green, Red, Blue |
| Interface | SPI, Parallel, MIPI, 16-Bit (RGB) |
| Viewing Area [x] | 43.35 mm |
| Viewing Area [y] | 33.61 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.35 | |
| 10 | $ 24.55 | |||
| 100 | $ 21.44 | |||
| 500 | $ 19.67 | |||
Description
General part information
DLC0200CCP04DF-2
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 16-Bit (RGB), MIPI, SPI 2" (50.80mm) 480 x 360
