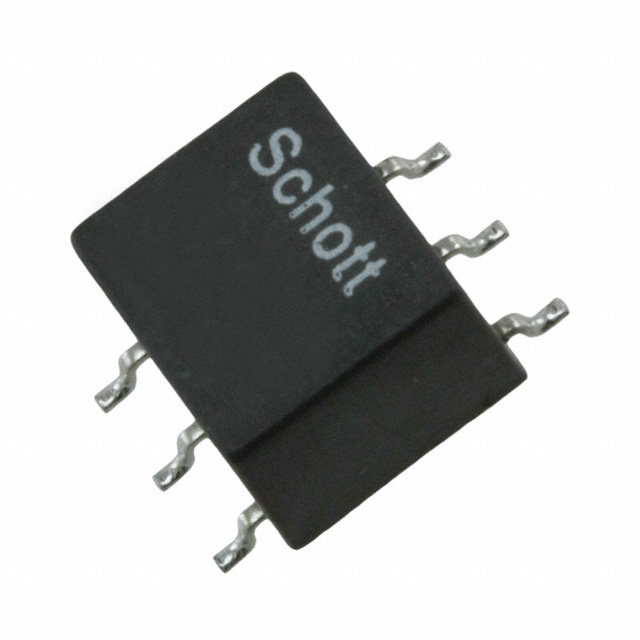

36976
UnknownSchott Corporation
TRANSF T3/DS3/E3/STS-1 1:1 SMD
Deep-Dive with AI
Search across all available documentation for this part.
36976
UnknownSchott Corporation
TRANSF T3/DS3/E3/STS-1 1:1 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 36976 |
|---|---|
| Height - Seated (Max) | 6.35 mm |
| Height - Seated (Max) [Max] | 0.25 in |
| Inductance | 100 µH |
| Mounting Type | Surface Mount |
| Size / Dimension [x] | 0.3 in |
| Size / Dimension [x] | 7.62 mm |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [y] | 9.91 mm |
| Turns Ratio - Primary:Secondary | 1:1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.80 | |||
| 250 | $ 1.77 | |||
Description
General part information
36976
100µH Pulse Transformer 1:1 Surface Mount
Documents
Technical documentation and resources
No documents available
