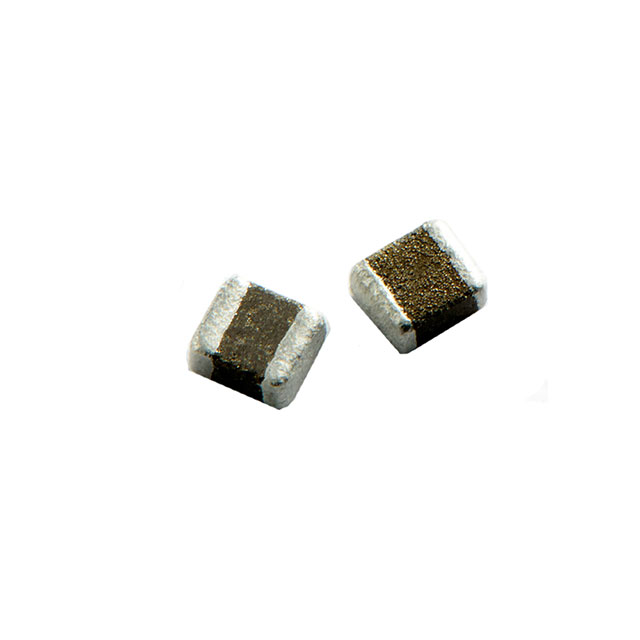

DP20161R0MSB
ActiveABC Taiwan Electronics Corp.
SMD SHIELDED POWER INDUCTOR , 20
Deep-Dive with AI
Search across all available documentation for this part.
DP20161R0MSB
ActiveABC Taiwan Electronics Corp.
SMD SHIELDED POWER INDUCTOR , 20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DP20161R0MSB |
|---|---|
| Current - Saturation (Isat) | 3.1 A |
| Current Rating (Amps) | 2.2 A |
| DC Resistance (DCR) [Max] | 70 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0806 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.16 | |
| 100 | $ 0.09 | |||
Description
General part information
DP20161R0MSB
1 µH Shielded Inductor 2.2 A 70mOhm Max 0806 (2016 Metric)
Documents
Technical documentation and resources
No documents available
