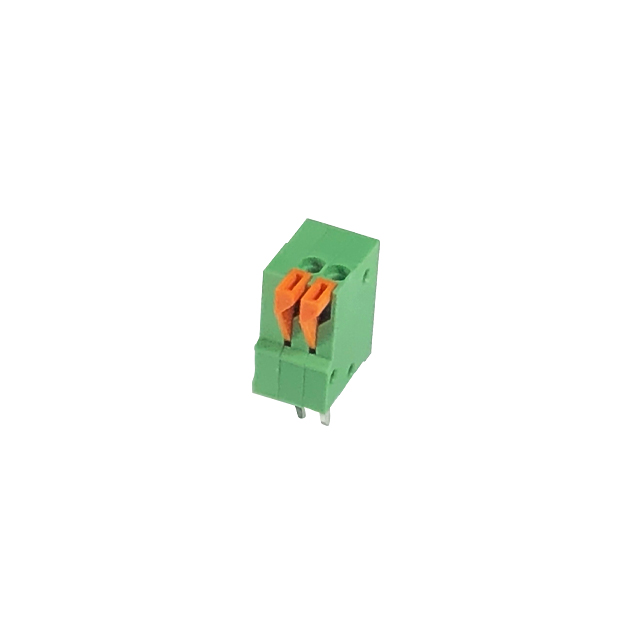

141V-02P
ActiveDinkle Corporation, USA
TERM BLK 2POS 2.54MM PID PLG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
141V-02P
ActiveDinkle Corporation, USA
TERM BLK 2POS 2.54MM PID PLG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 141V-02P |
|---|---|
| Color | Green |
| Current | 5 A |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Positions Per Level | 2 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.98 | |
| 10 | $ 0.74 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.59 | |||
| 200 | $ 0.54 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.44 | |||
Description
General part information
141V-02P
2 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Through Hole
