Q-26066000M072i
ActiveAmphenol Custom Cable

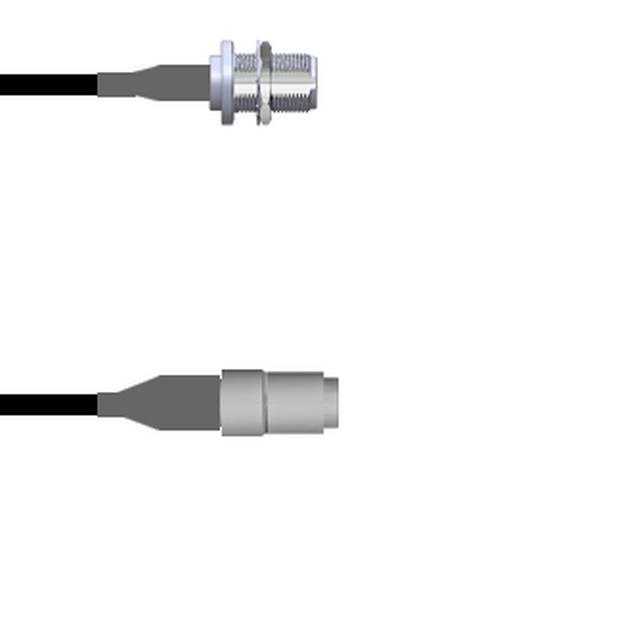

CBL ASSY 1.0/2.3-NTYPE PL-JK 6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-26066000M072i
ActiveAmphenol Custom Cable
CBL ASSY 1.0/2.3-NTYPE PL-JK 6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-26066000M072i |
|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | LMR 240 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 2.5 GHz |
| Length | 6 ft |
| Length | 72 in |
| Length | 1.8 m |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
| Style | |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 182.71 | |
| 25 | $ 179.23 | |||
| 50 | $ 175.74 | |||
| 100 | $ 172.26 | |||
| 250 | $ 168.77 | |||
Description
General part information
Q-26066000M072i
Cable Assembly Coaxial 1.0/2.3 to N-Type LMR 240 72.0" (1.8m) 6.0'
Documents
Technical documentation and resources
No documents available
